Component Locations

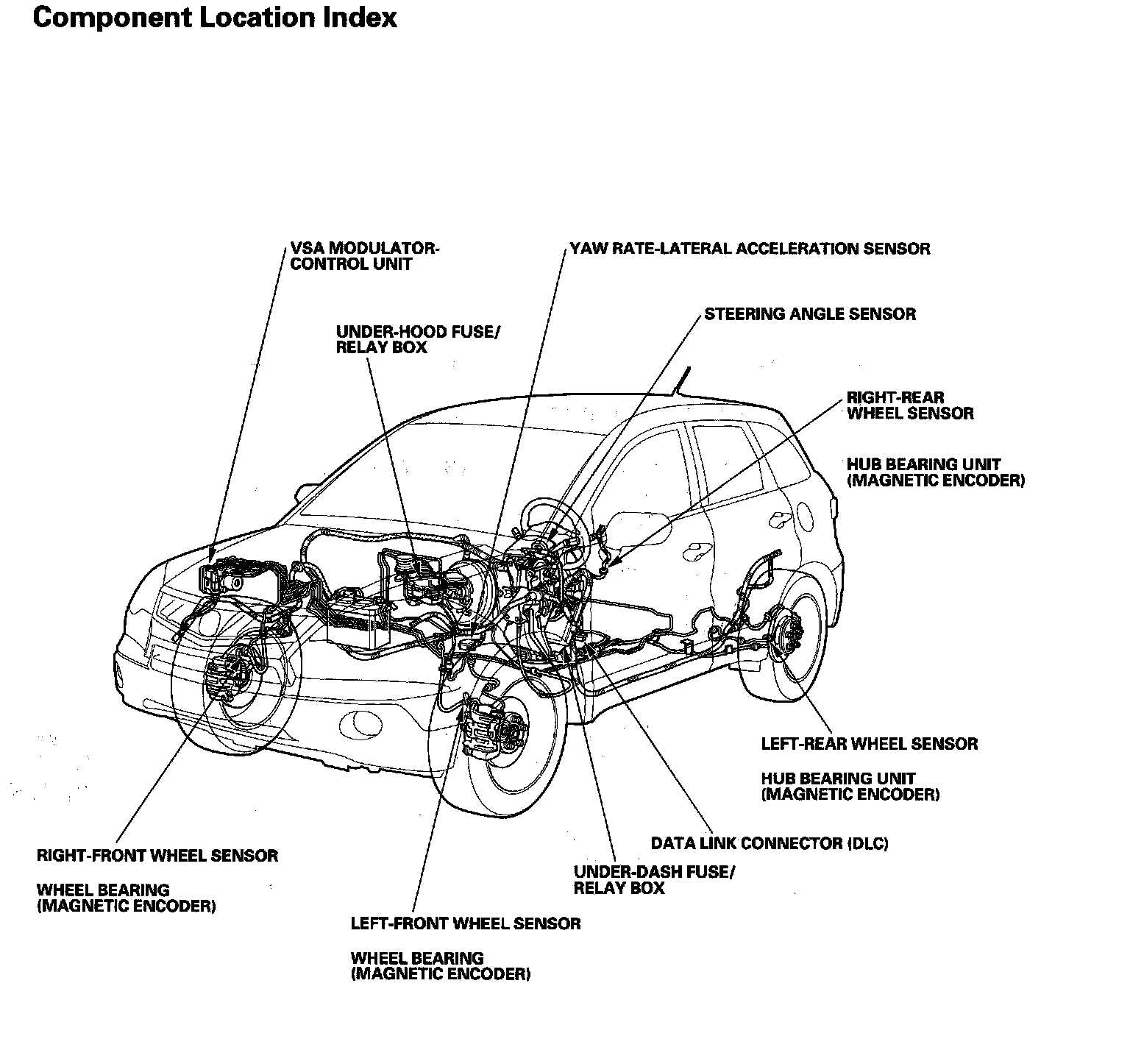

VSA (Vehicle Stability Assist) System Component Location Index:



Relay And Control Unit Locations Engine Compartment:

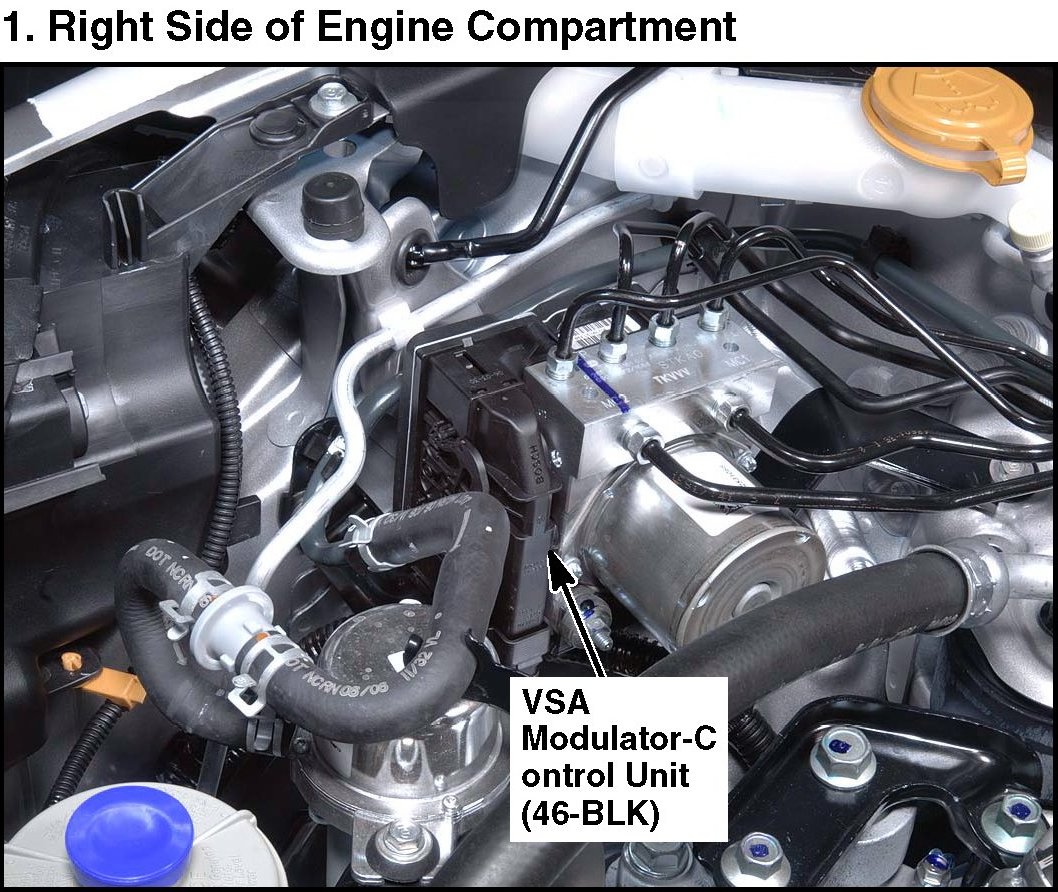

1. Right Side Of Engine Compartment:
