Transmission Position Sensor/Switch: Locations

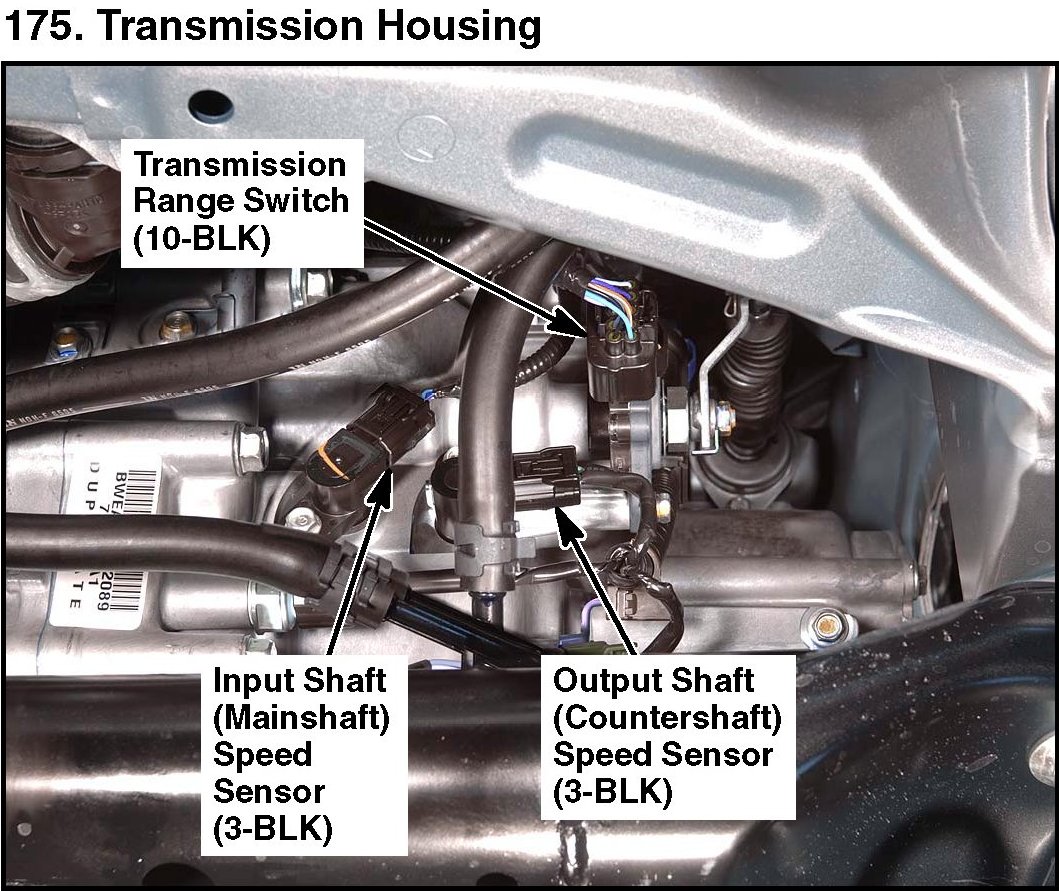

175. Transmission Housing:

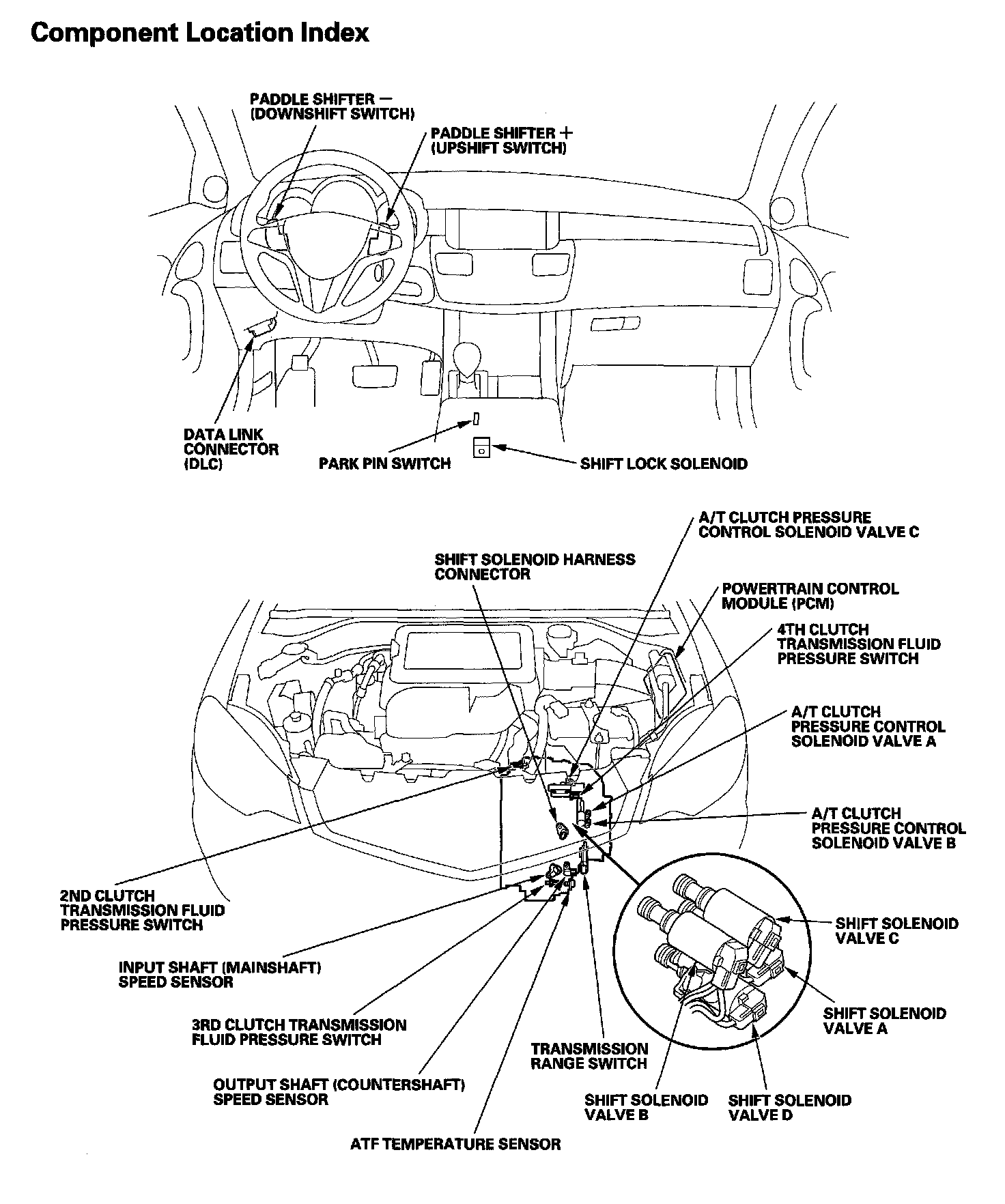

Automatic Transmission Component Location Index:
