Driver's Under-dash Fuse/Relay Box

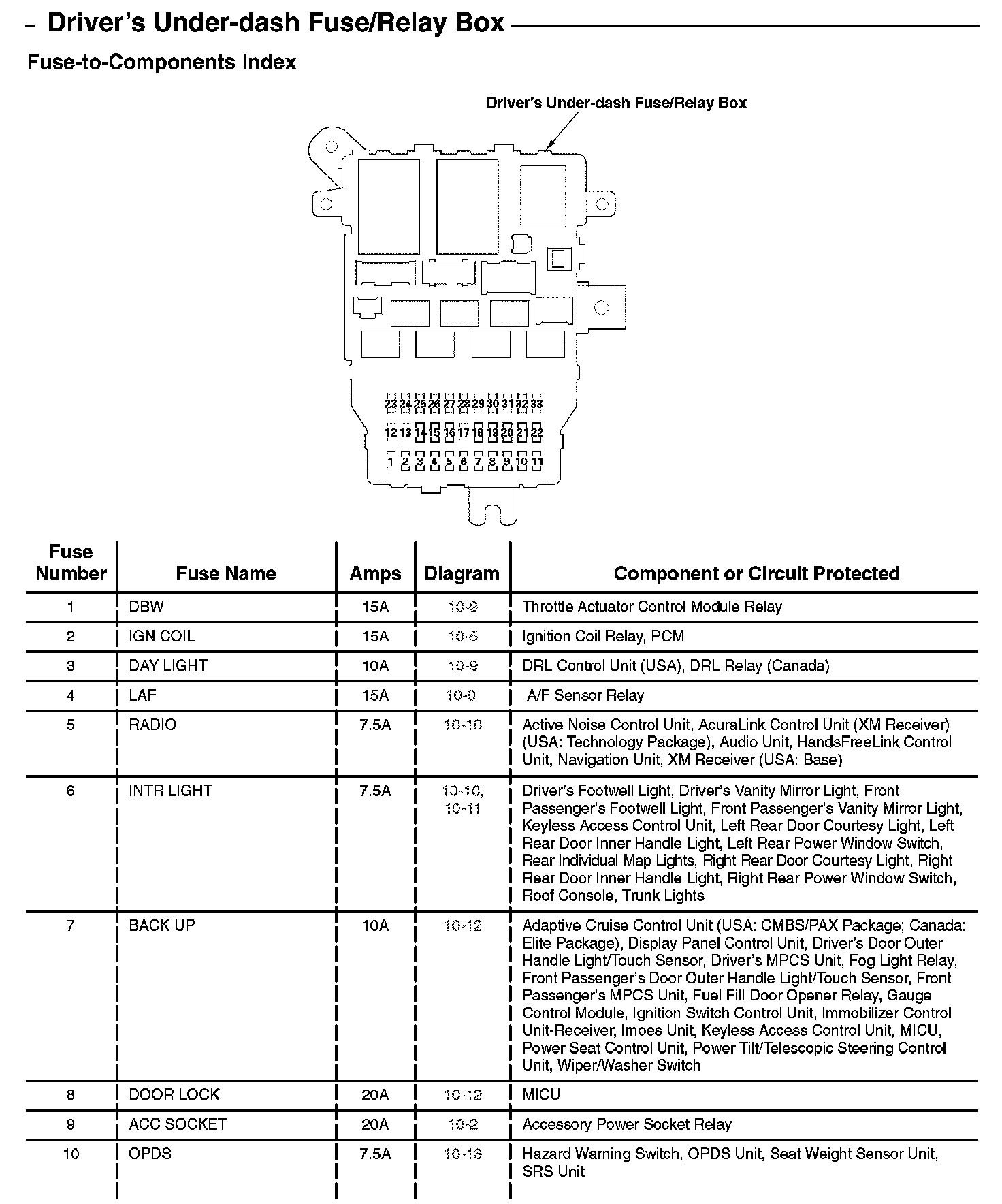

Driver's Under-dash Fuse/Relay Box (Part 1):

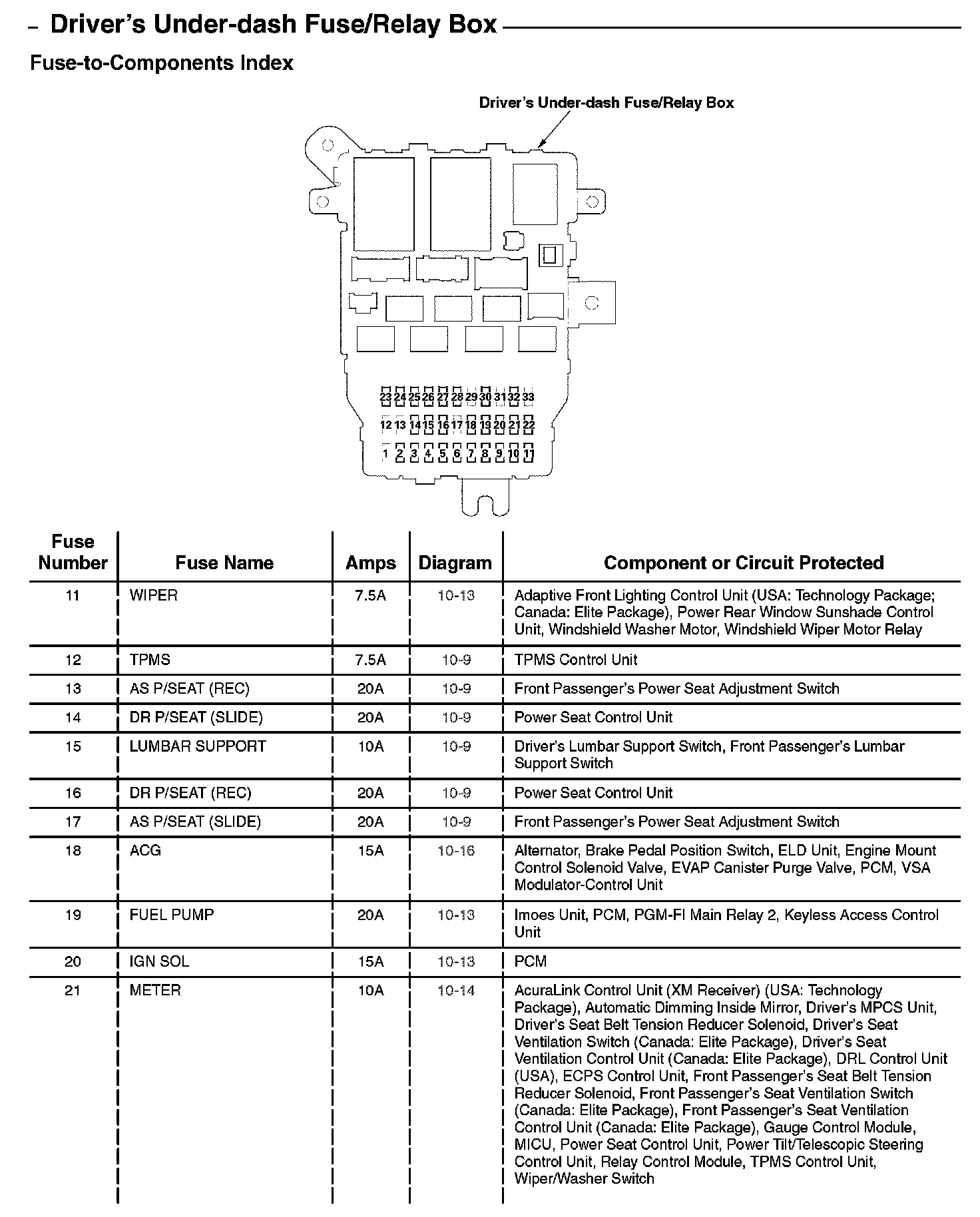

Driver's Under-dash Fuse/Relay Box (Part 2):

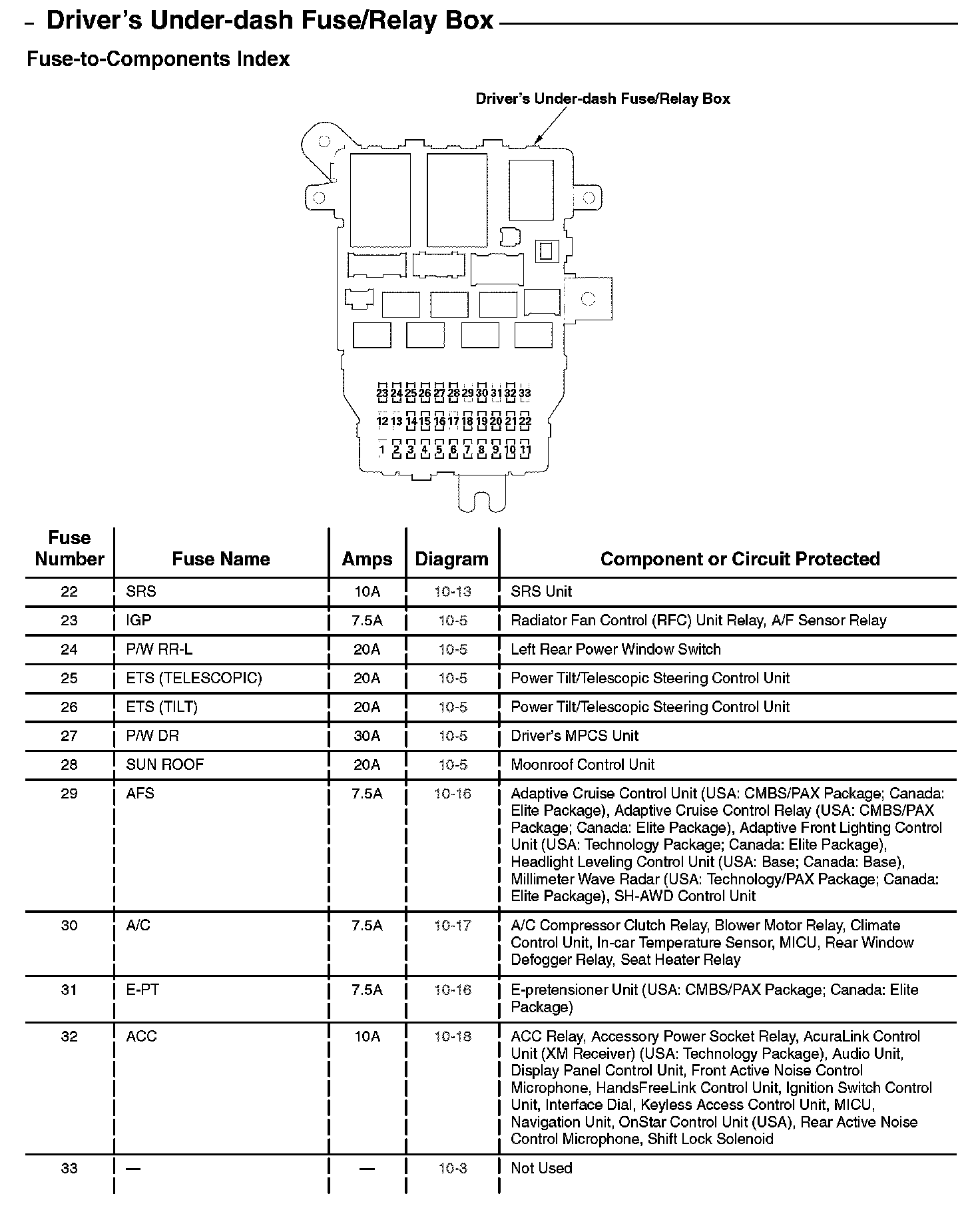

Driver's Under-dash Fuse/Relay Box (Part 3):
