'05-06 models

WARNING: This page is about a different car, the 2006 Acura RL and 2005 Acura RL. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear seat (see REAR SEAT REMOVAL/INSTALLATION ).
Disconnect the 22P and 16P connectors (A) from the OnStar control unit (B).

Fig 1: Identifying Onstar Control Unit 22P And 16P Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.

The dealer troubleshooting process for OnStar consists of these items:

Check fuses for OnStar system.
Check continuity of wiring.
OnStar diagnostic check.
Vehicle interface functionality check.

If the OnStar hardware in a vehicle has been replaced, the dealer must contact OnStar technical support to report the new STID and ESN.

The dealer will do the MIN programming process and MIN confirmation process if a new MIN is provided by OnStar technical support.

Once the dealer has notified OnStar of the new ESM and MIN, and done the MIN programming process if necessary, the dealer will press the blue OnStar button and request a configuration for the vehicle.

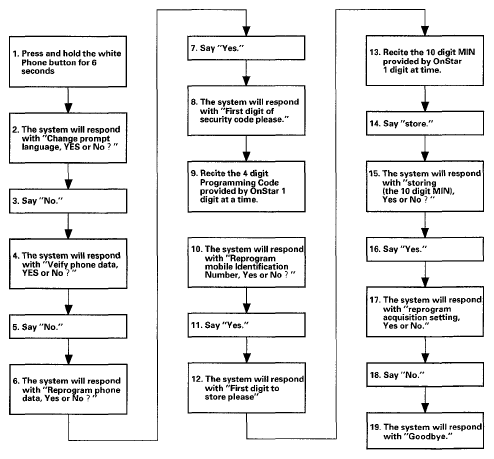

DES44: 3.4 MIN programming process

DES45:

Fig 2: MIN Programming Process Flow Chart - DES45

Courtesy of AMERICAN HONDA MOTOR CO., INC.

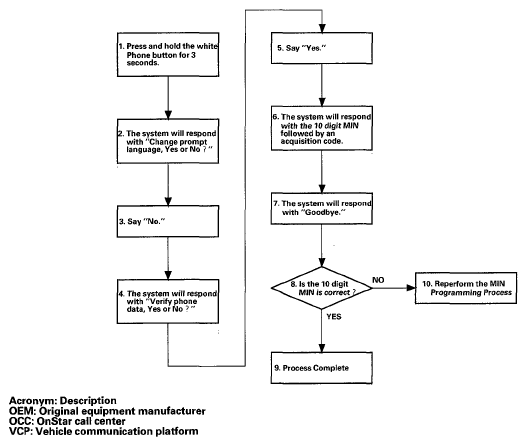

DES46: 5 MIN confirmation process

DES47:

Fig 3: MIN Programming Process Flow Chart - DES47

Courtesy of AMERICAN HONDA MOTOR CO., INC.
