Engine Mount Replacement

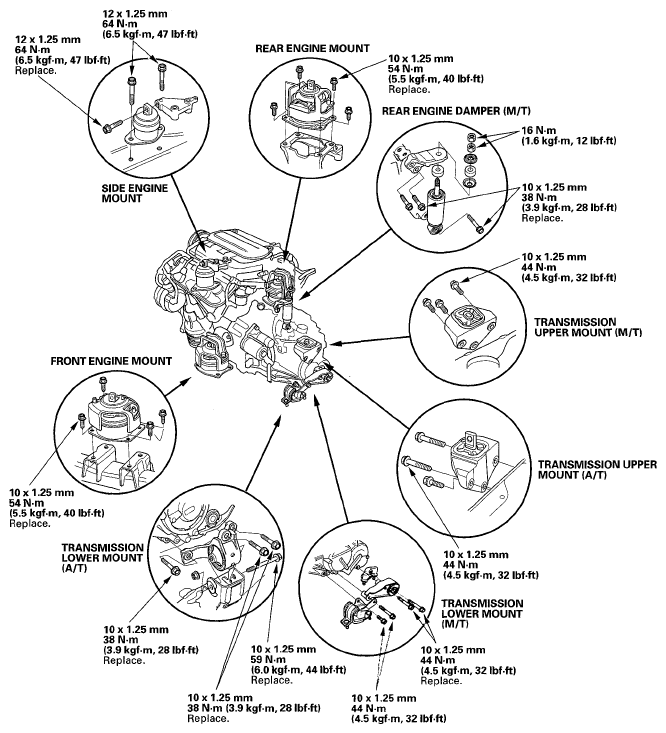

Fig 1: Engine Mount Replacement Components With Torque Specifications
G05457581Courtesy of AMERICAN HONDA MOTOR CO., INC.
