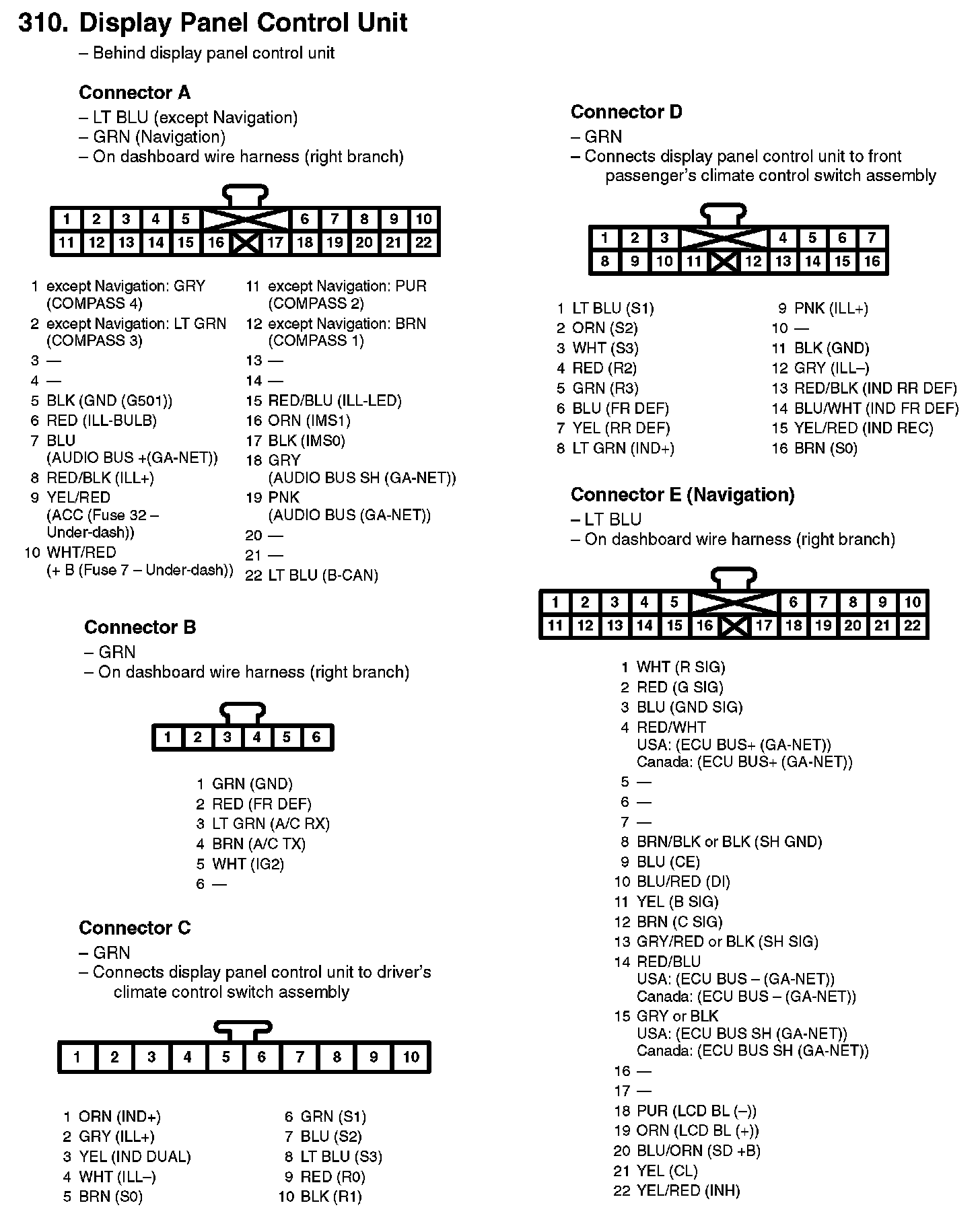

310. Display Panel Control Unit:

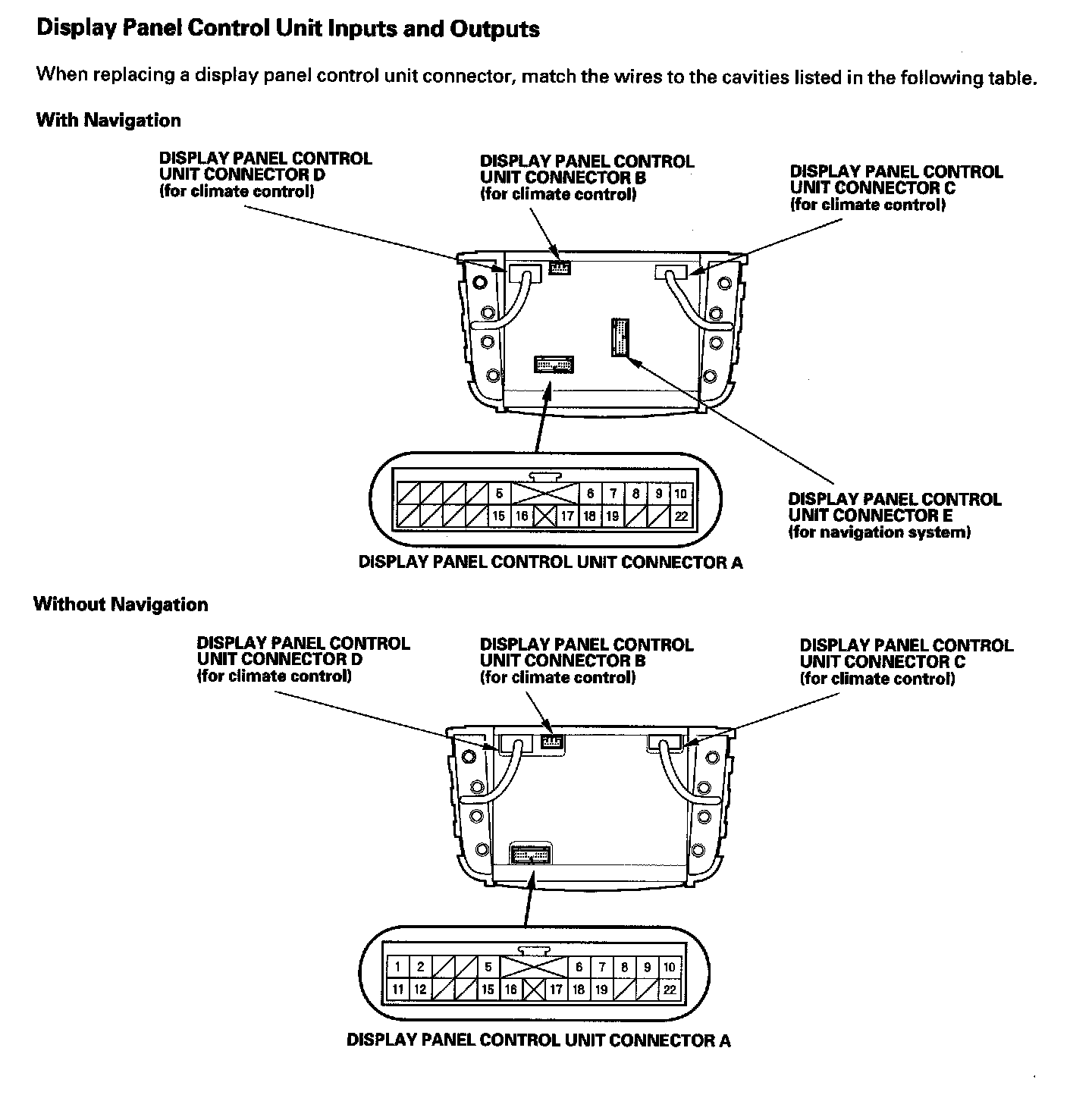

Display Panel Control Unit Inputs And Outputs Part 1:

Display Panel Control Unit Inputs And Outputs Part 2:

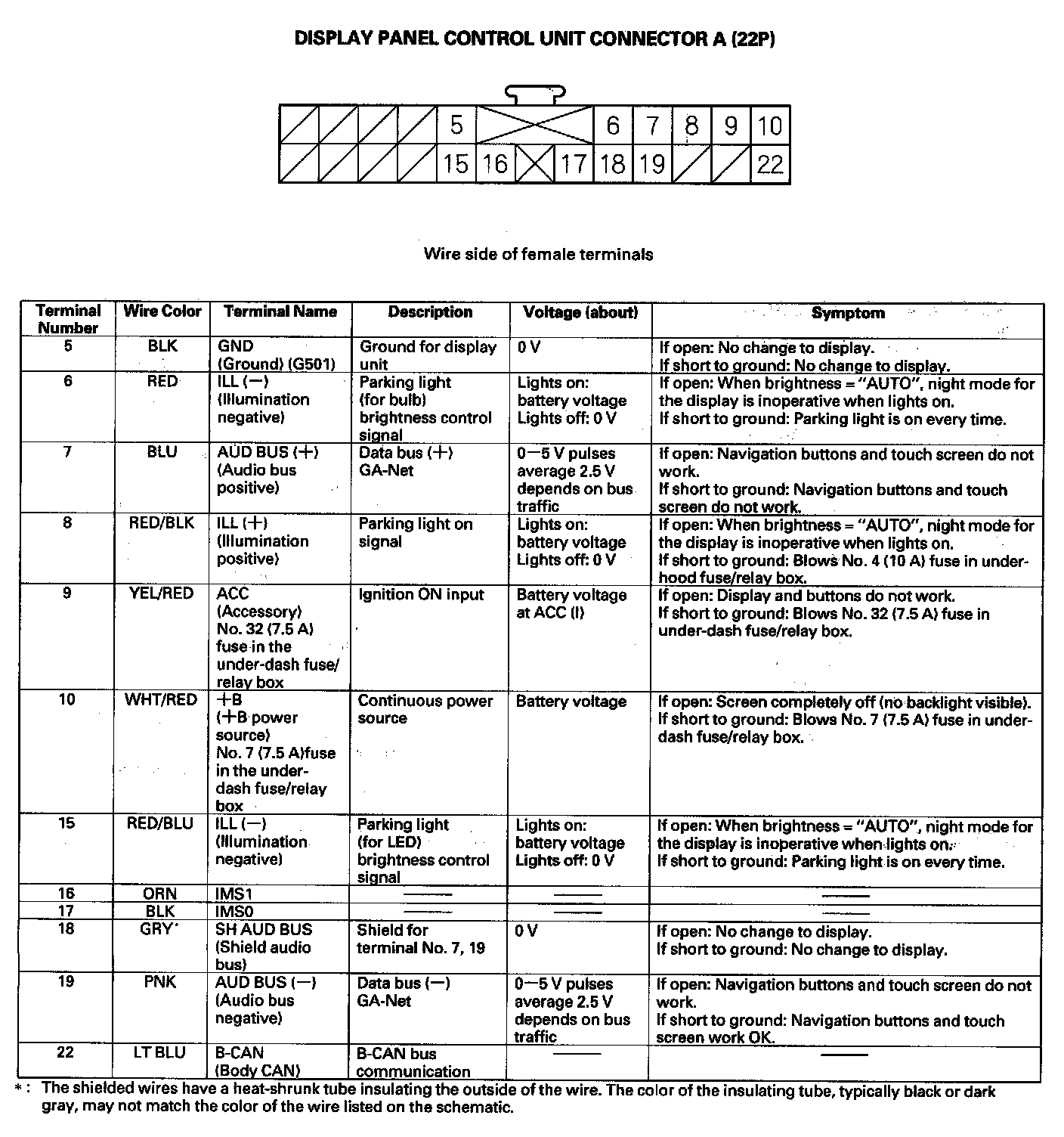

Display Panel Control Unit Connector A (22P):

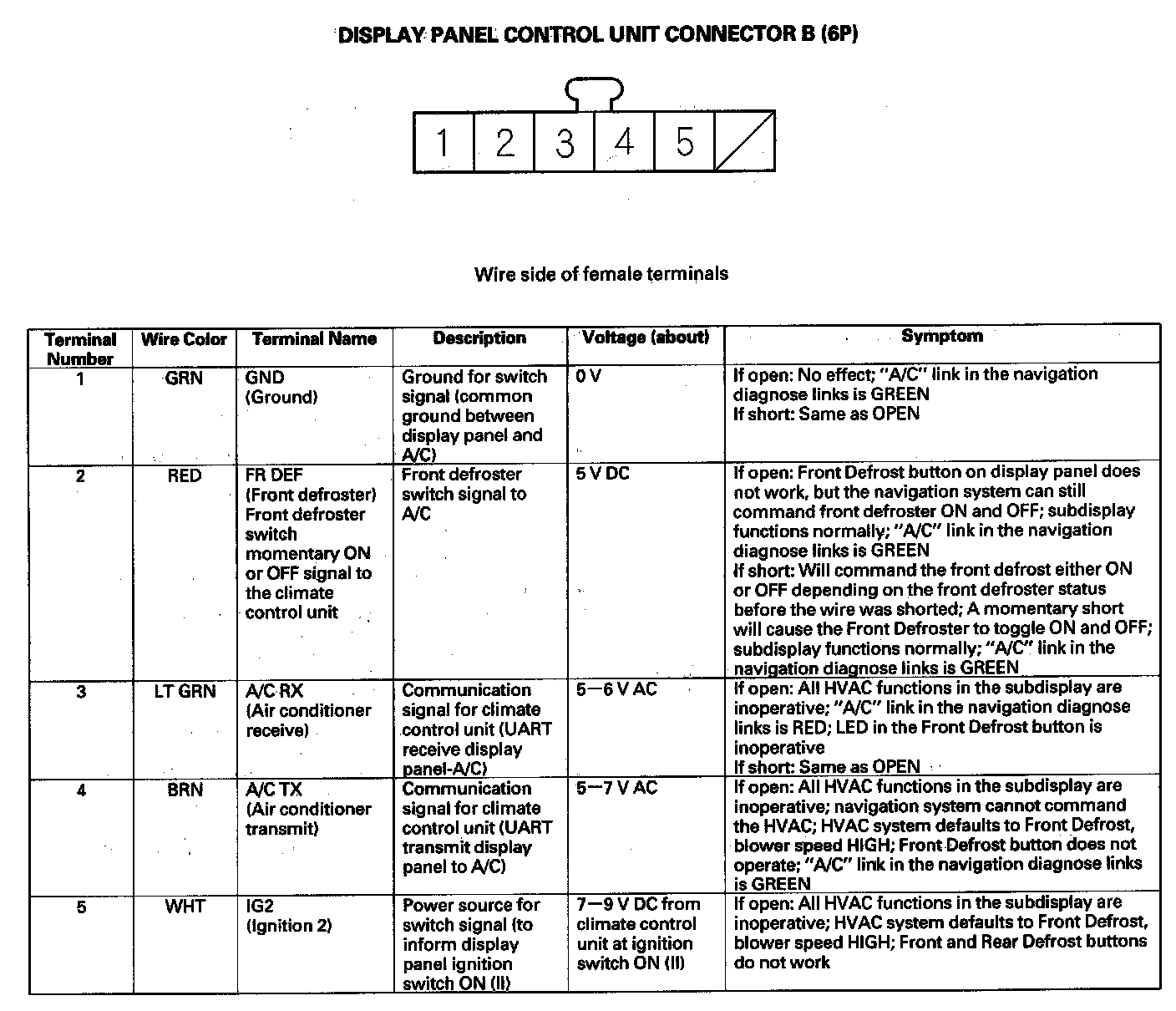

Display Panel Control Unit Connector B (6P):

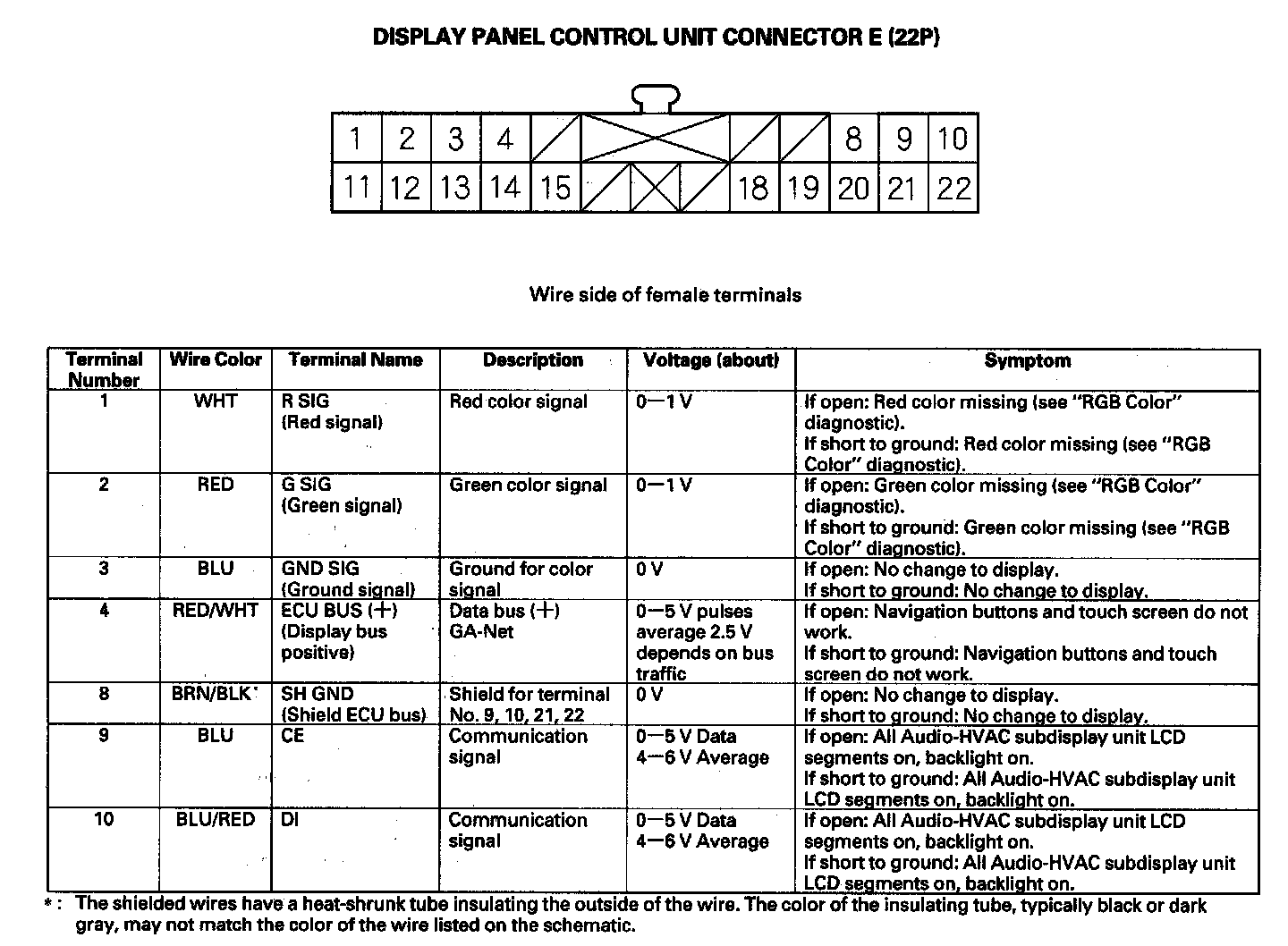

Display Panel Control Unit Connector E (22P) Part 1:

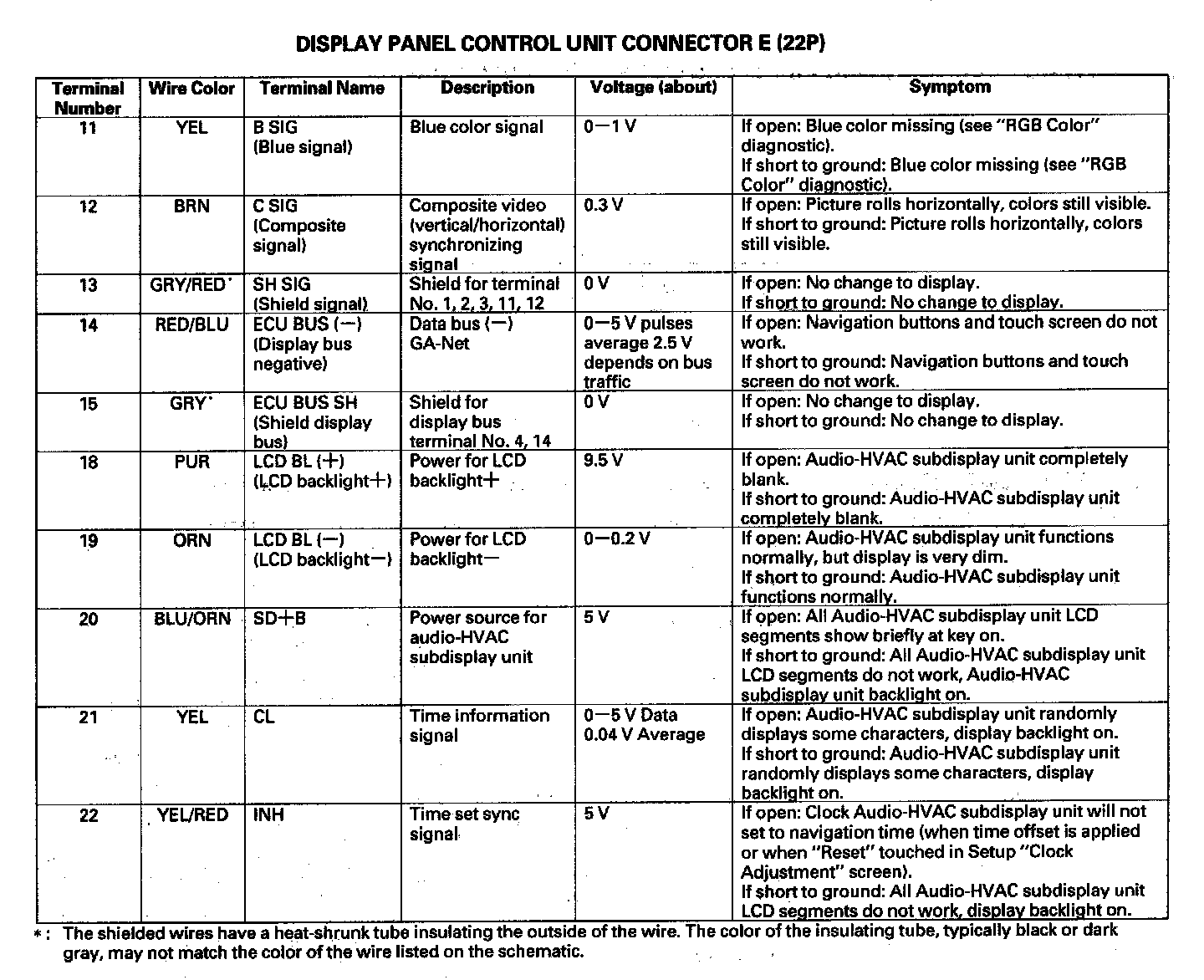

Display Panel Control Unit Connector E (22P) Part 2:

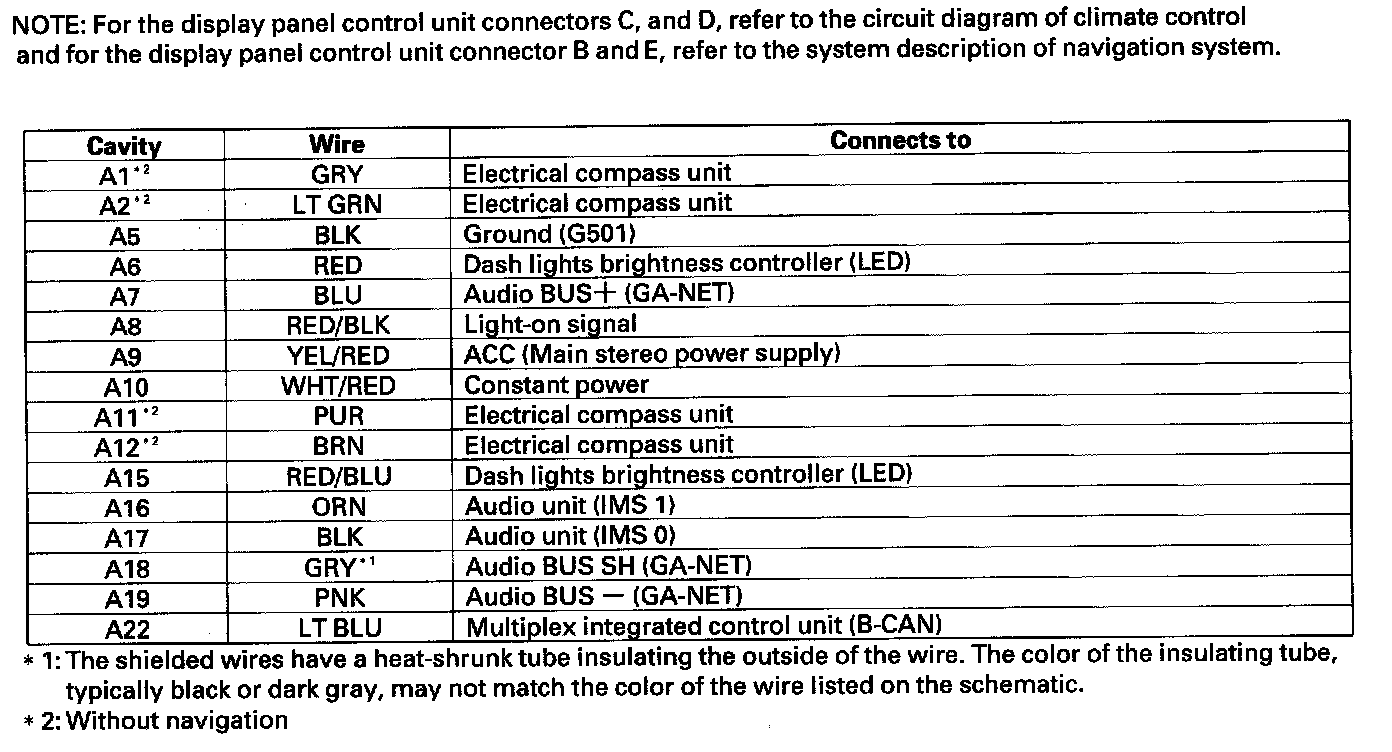

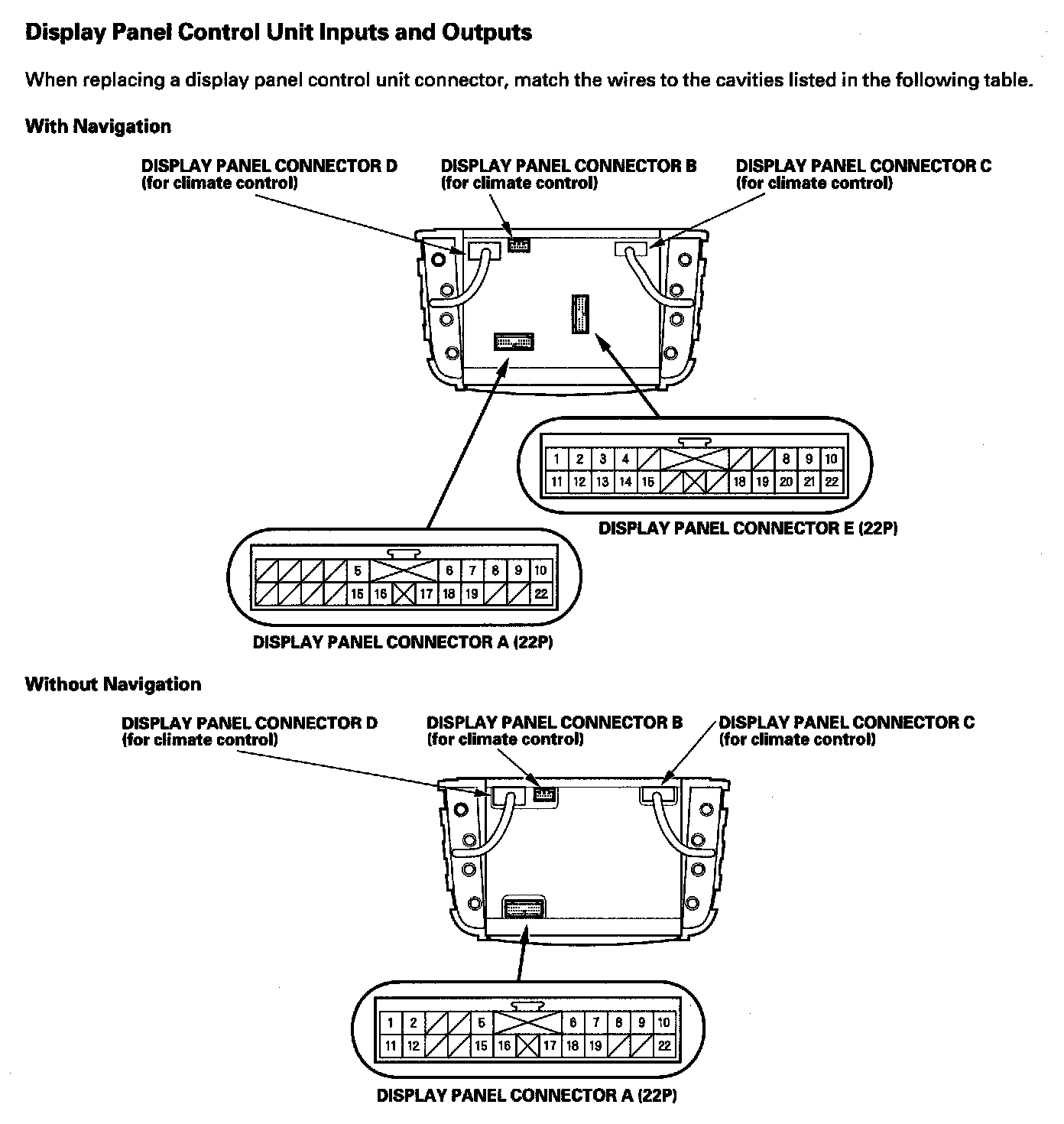

Display Panel Control Unit Inputs and Outputs Part 1:

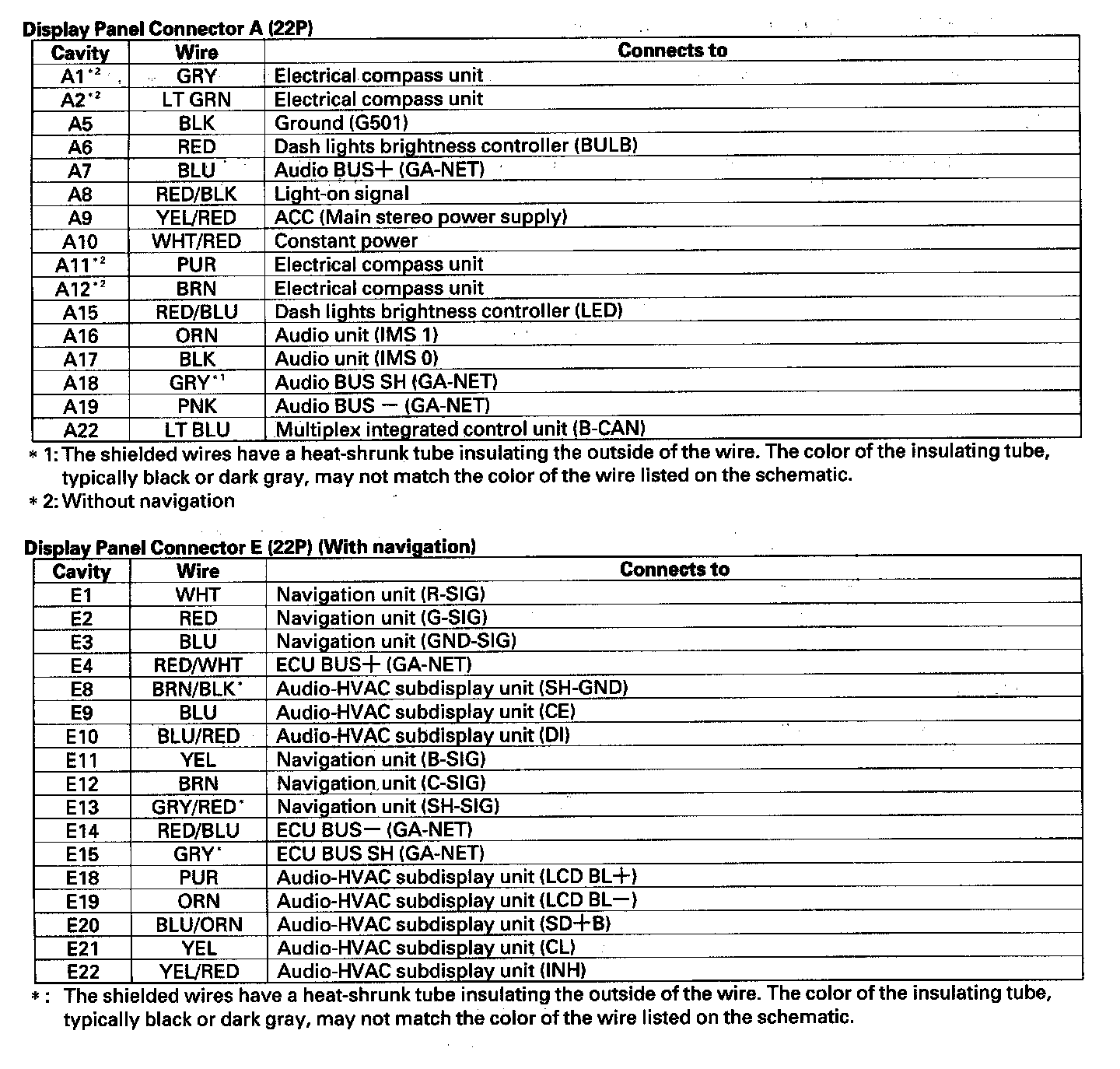

Display Panel Control Unit Inputs and Outputs Part 2:
