Navigation Module

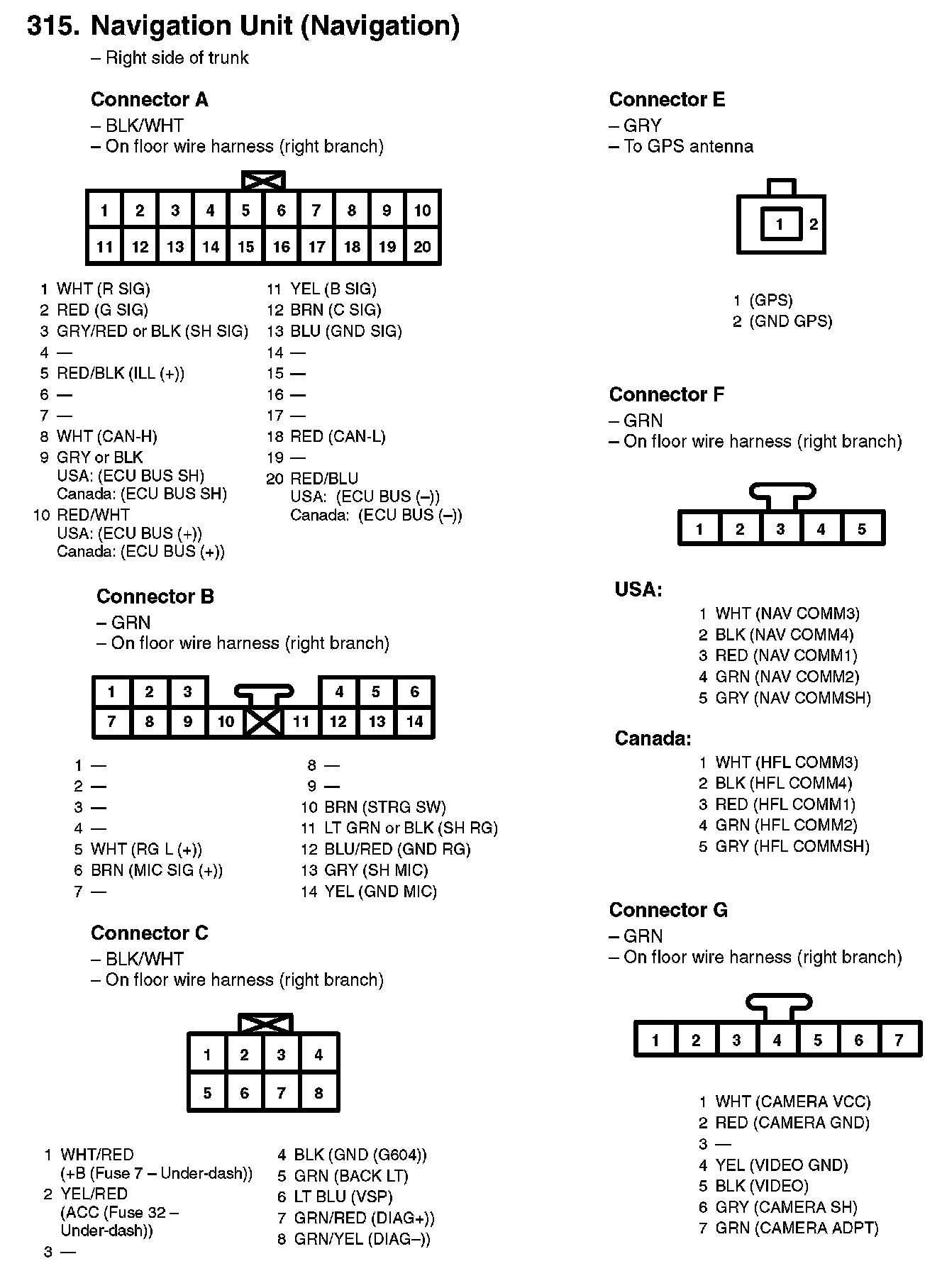

315. Navigation Unit (Navigation):

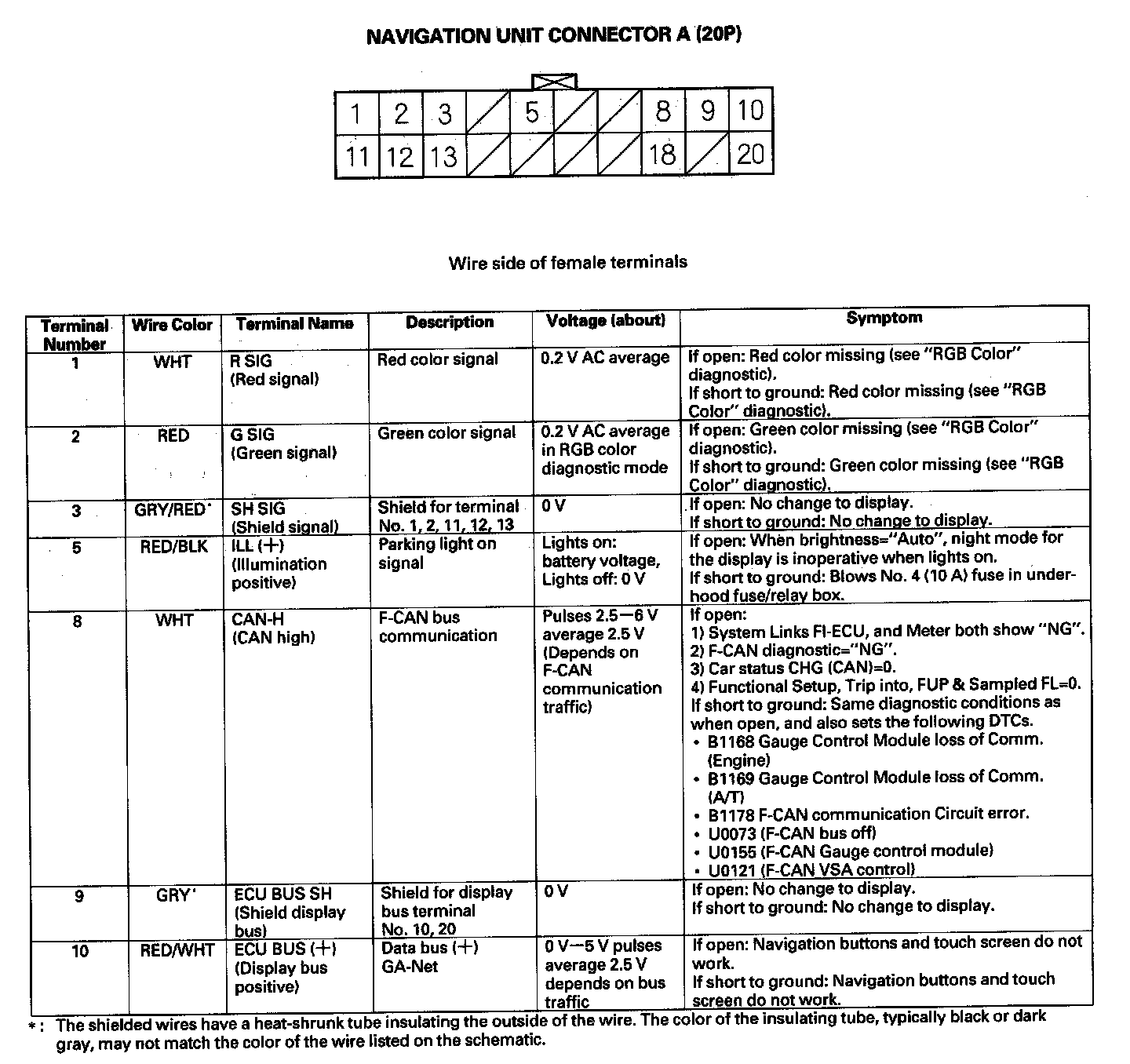

Navigation Unit Connector A (20P) Part 1:

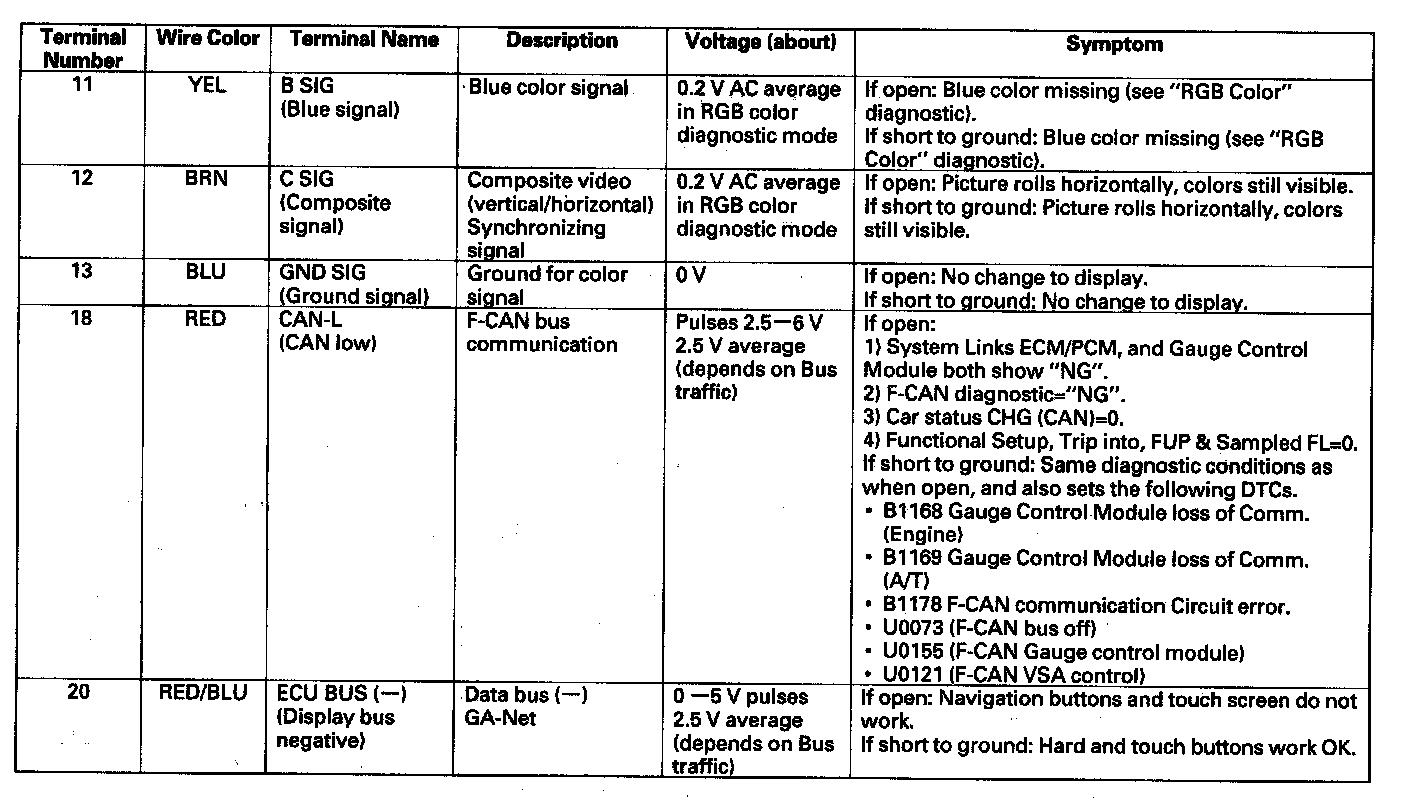

Navigation Unit Connector A (20P) Part 2:

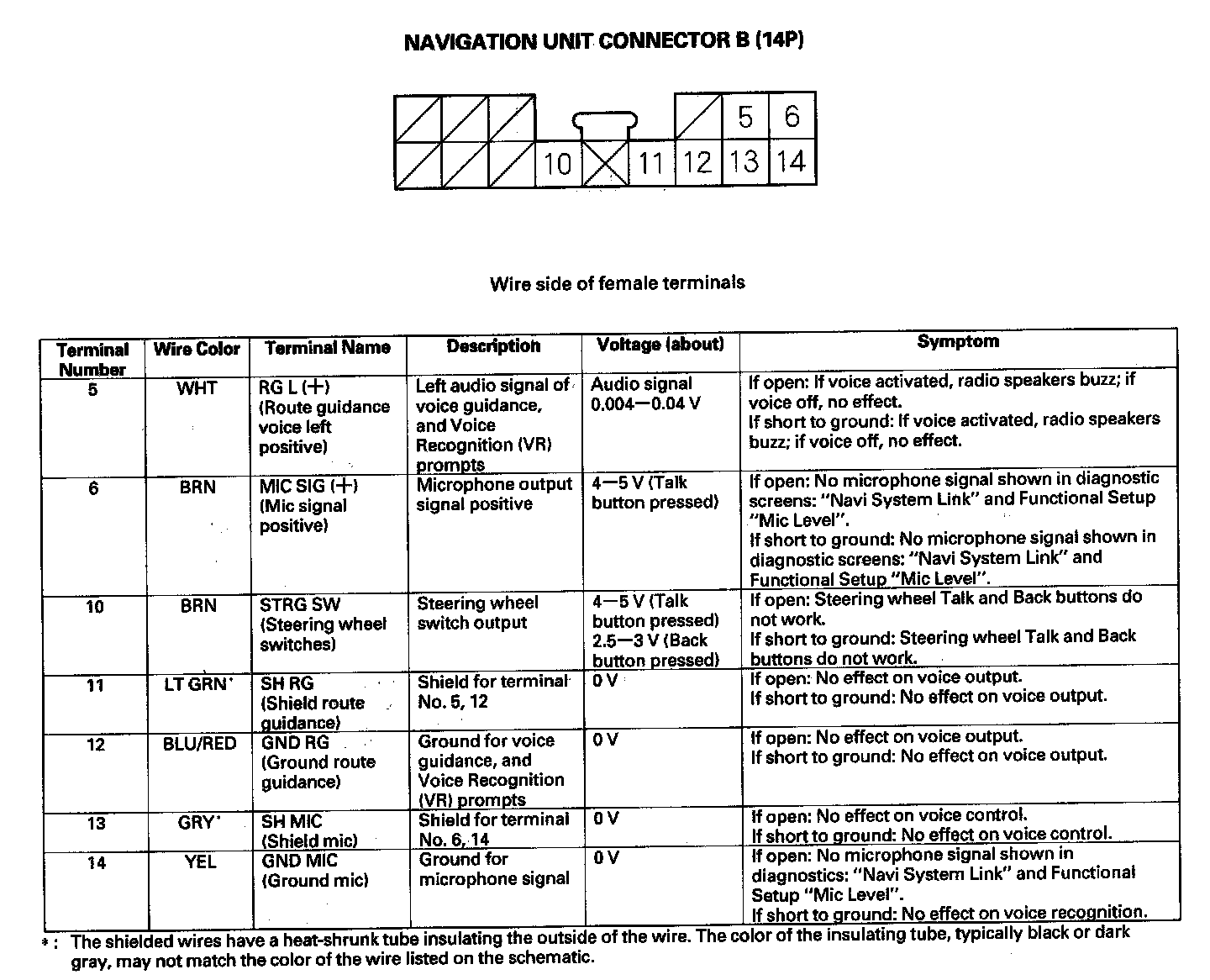

Navigation Unit Connector B (14P):

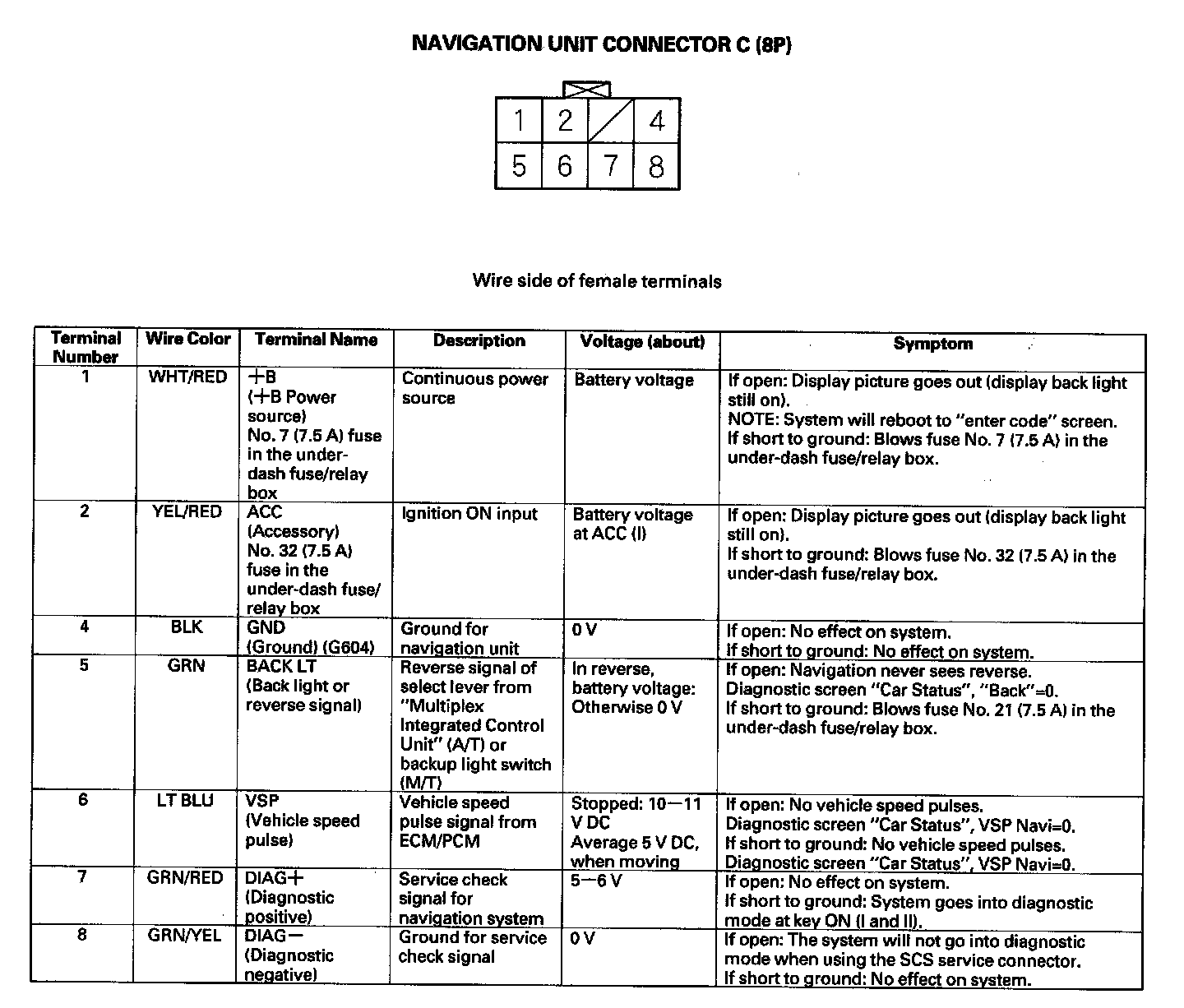

Navigation Unit Connector C (8P):

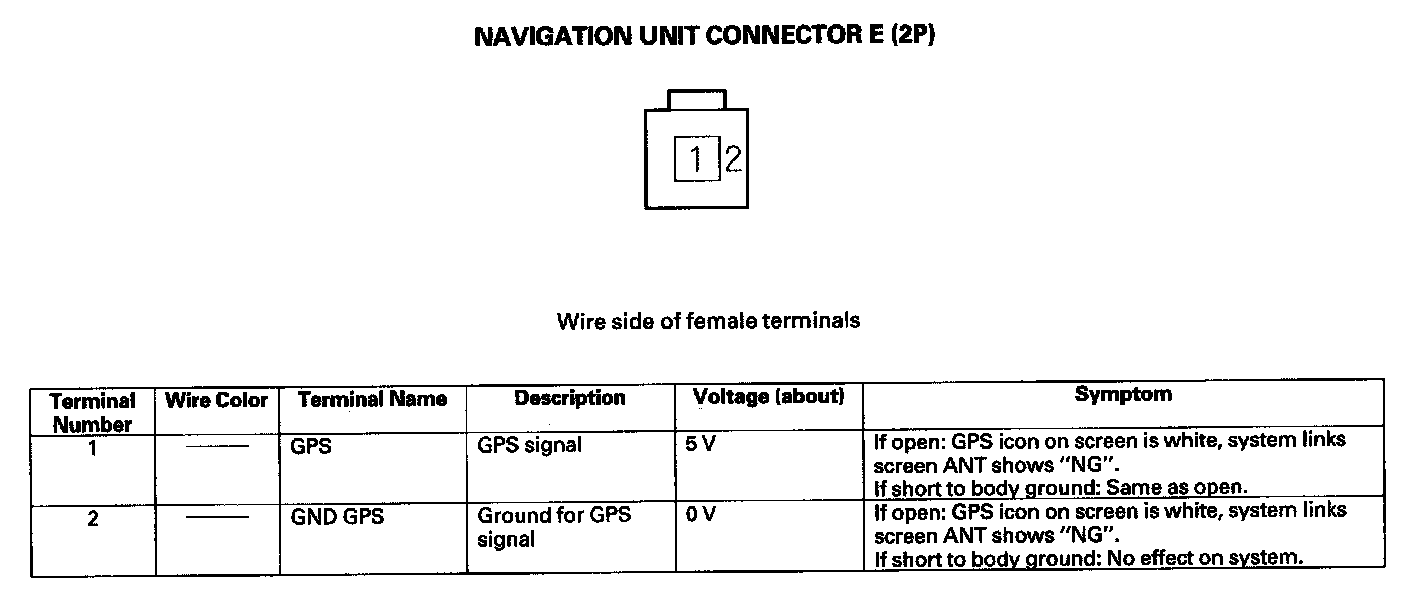

Navigation Unit Connector E (2P):

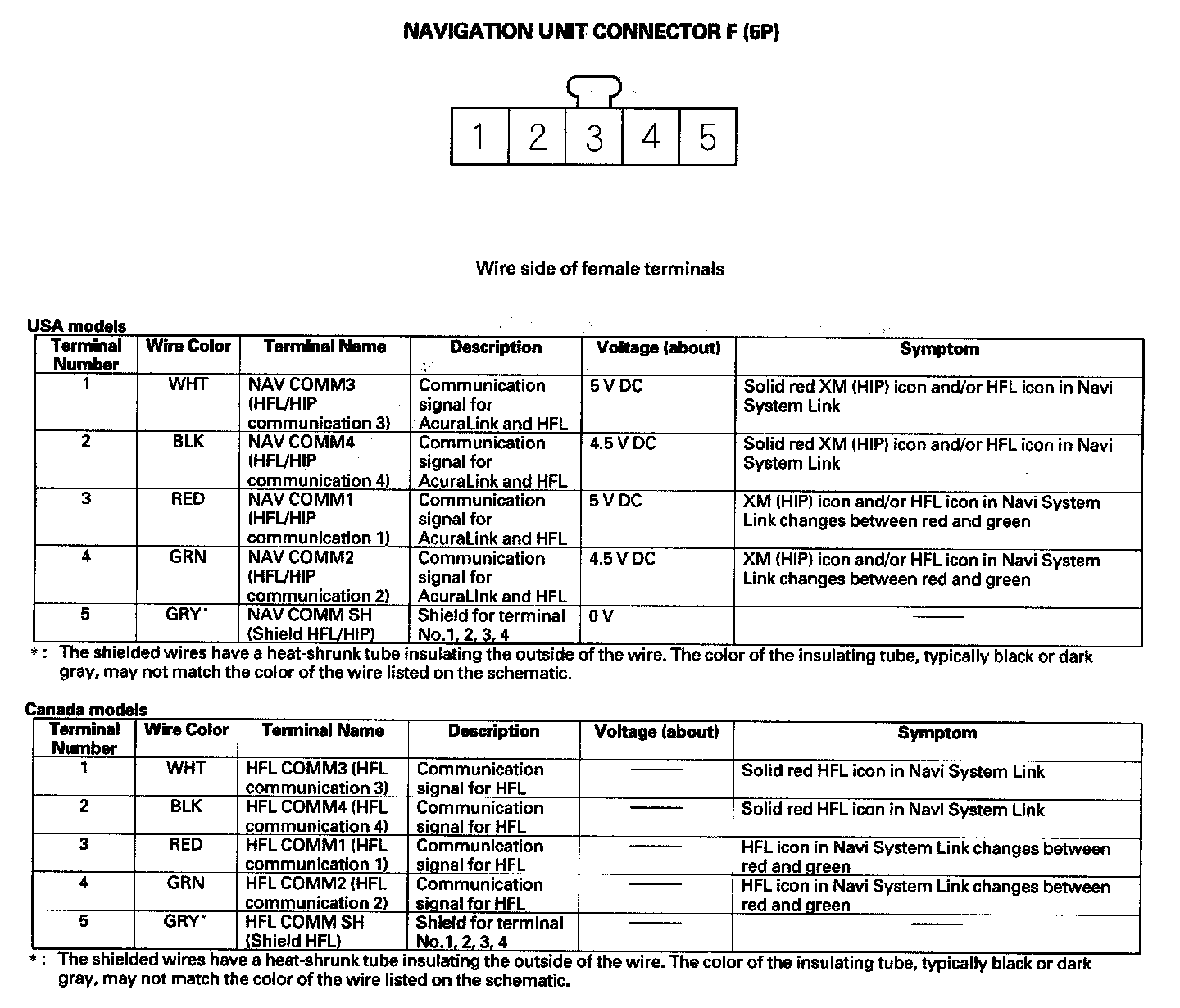

Navigation Unit Connector F (5P):

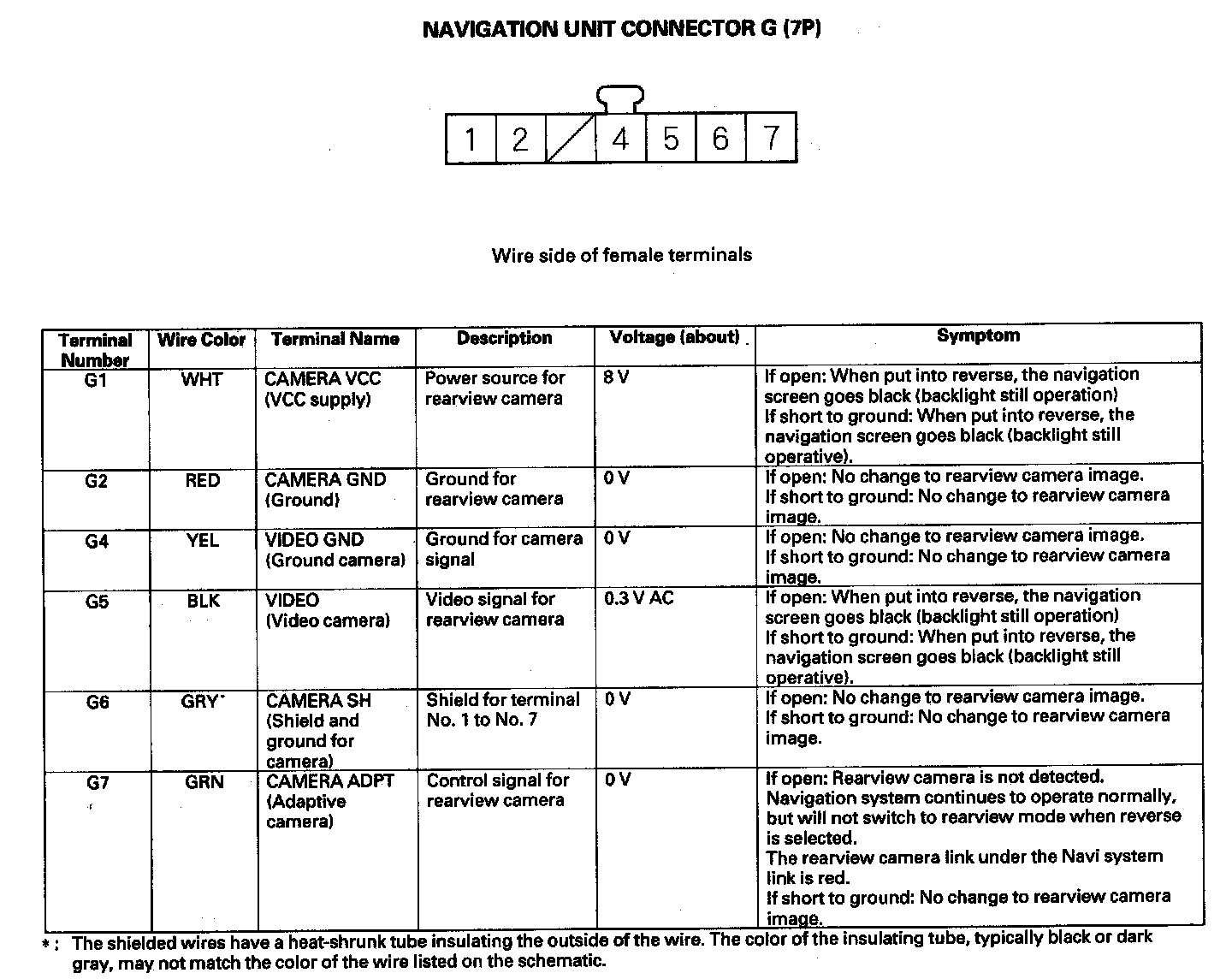

Navigation Unit Connector G (7P):
