Crankshaft Position Sensor: Locations

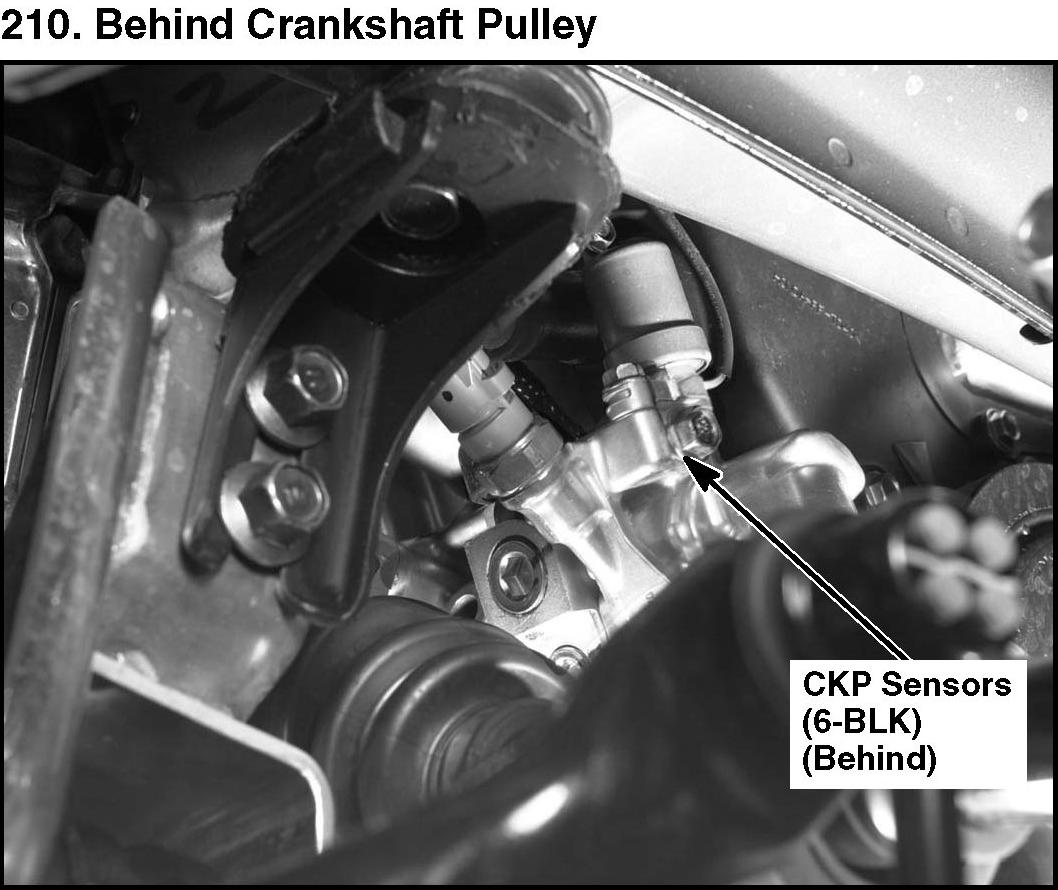

210. Behind Crankshaft Pulley:

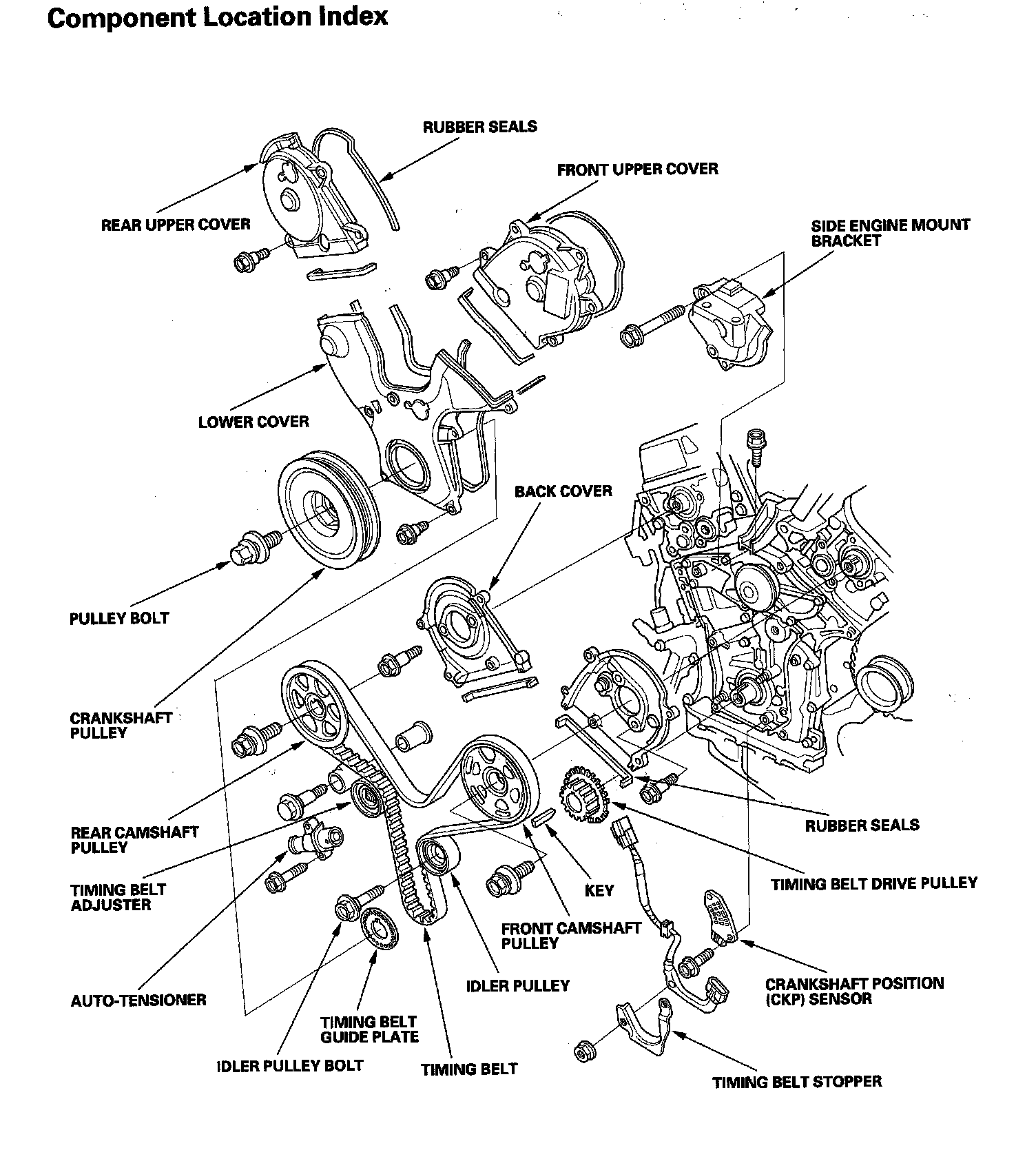

Cylinder Head Component Location Index (Part 1):



PGM-FI System Component Location Index:
