Overhaul Specifications

Manual Transmission

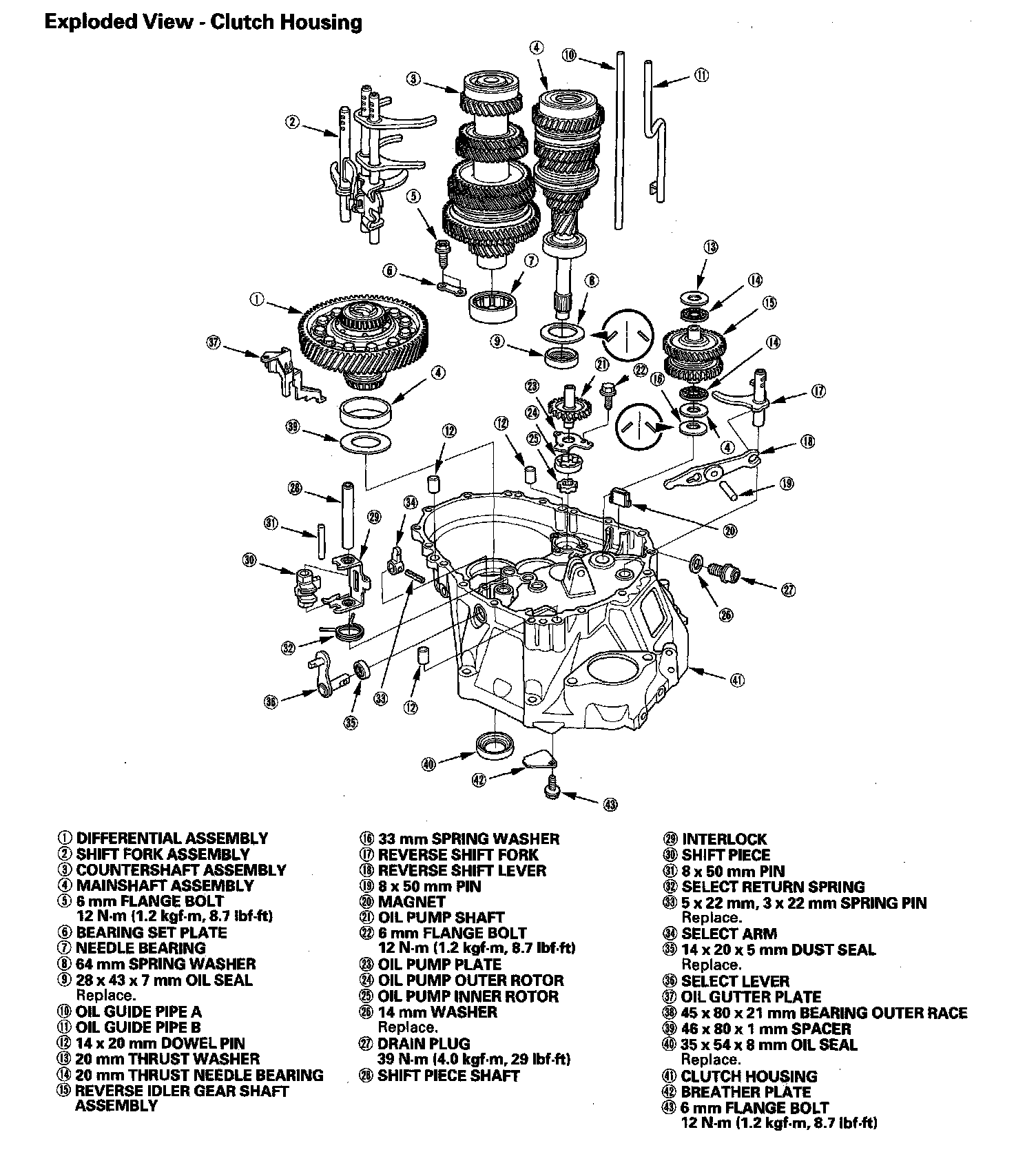

Clutch Housing:

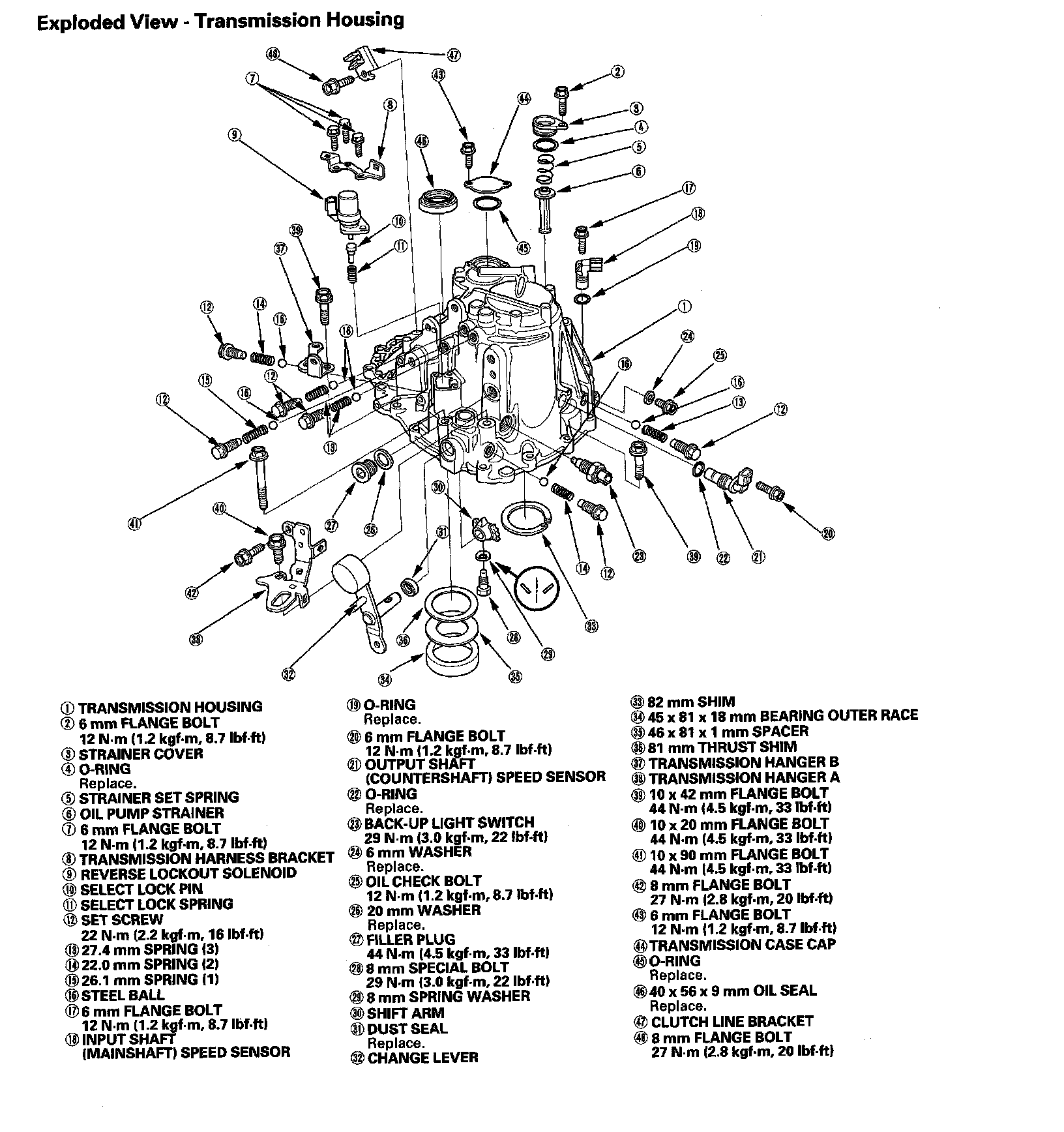

Transmission Housing:





Countershaft

Countershaft:





For information regarding Transmission Overhaul Specifications, please refer to Service and Repair. Service and Repair
