Circuit Diagram - PCM A/T Control System '06 Model

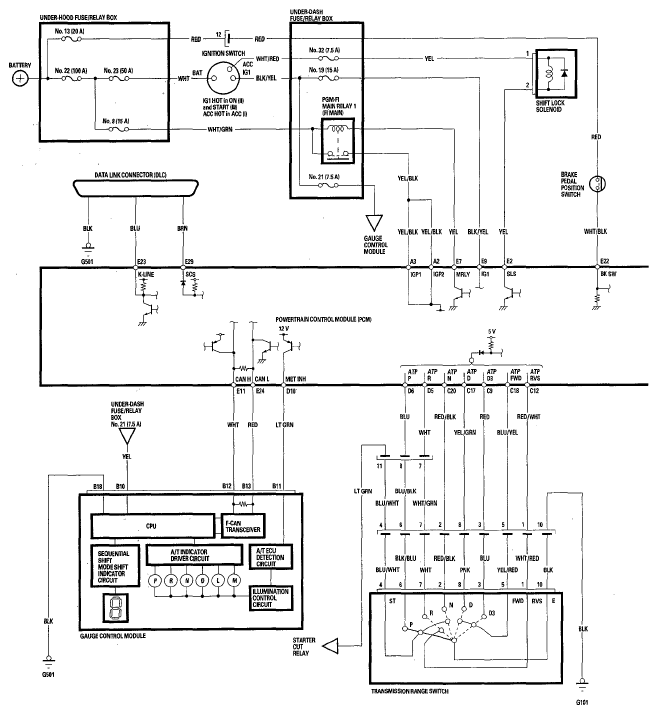

Fig 1: PCM A/T Control System Circuit Diagram '06 Model (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

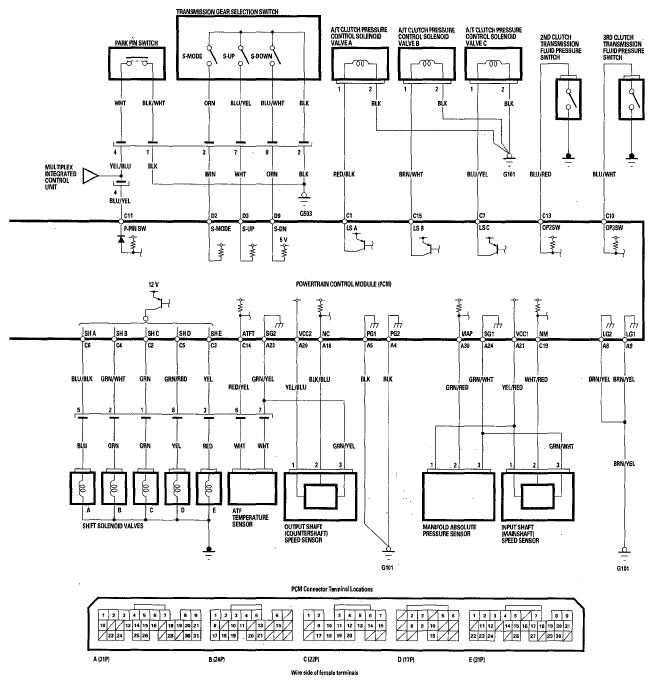

Fig 2: PCM A/T Control System Circuit Diagram '06 Model (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
