Fuse: Locations

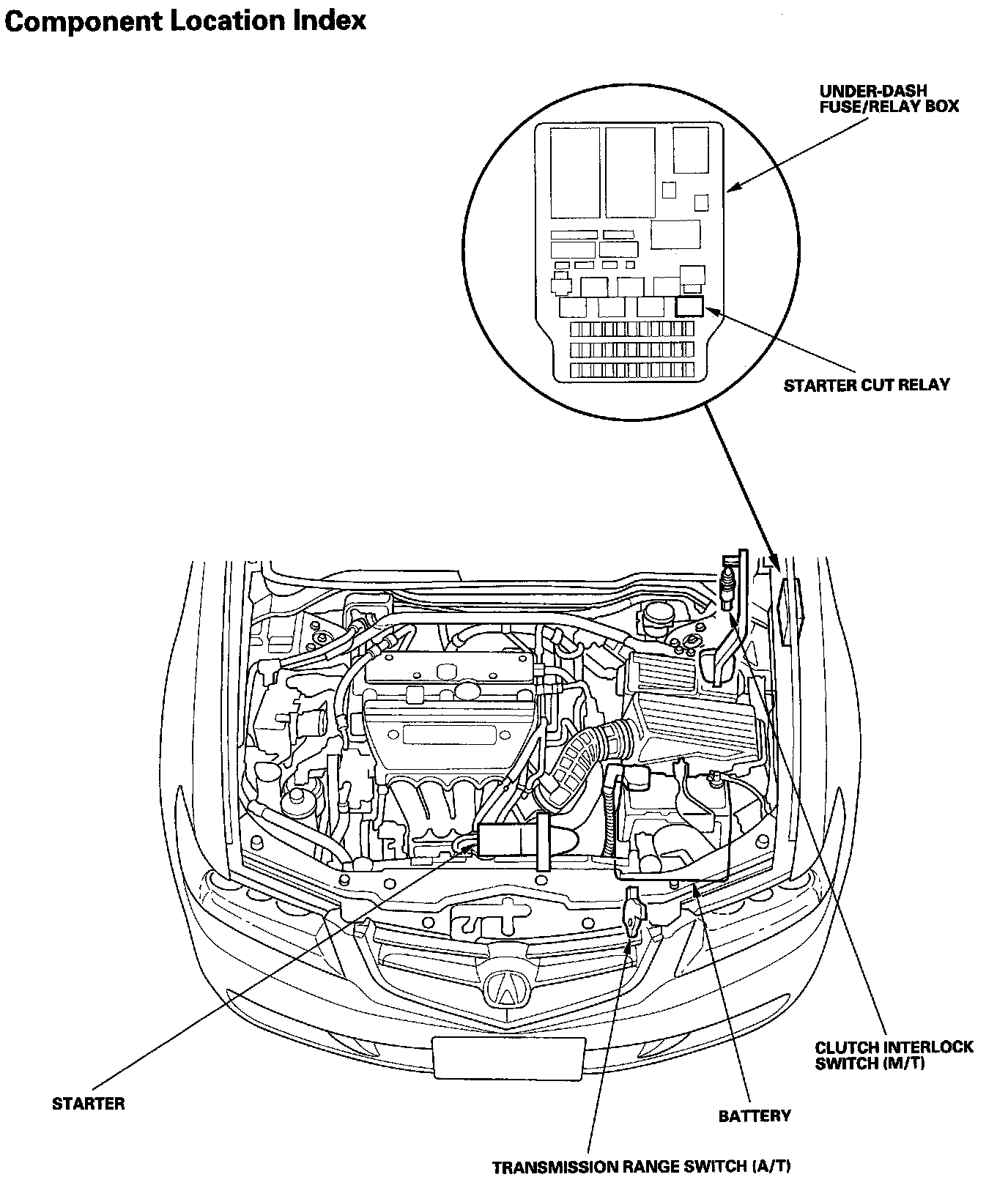

Starting System Component Location Index:



Relay And Control Unit Locations Dashboard:
