USB Adapter Replacement

  1. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  2. Detach the USB adapter cable (A) from the clip. Remove the cover (B) and disconnect the USB adapter cable connector (C).

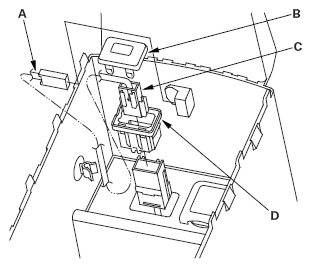

    Fig 1: Identifying USB Adapter Cable And Cover
    G06467380Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Carefully pull out the USB adapter holder (D) from the center console box.
  4. Install the USB adapter in the reverse order of removal.
