Disconnect climate control unit connector A (32P) and the audio-navigation switch panel 24P connector
Check for continuity between the following terminals of climate control unit connector A (32P) and the audio-navigation switch panel 24P connector
32P 24P

No 3 No 7

No 4 No 19

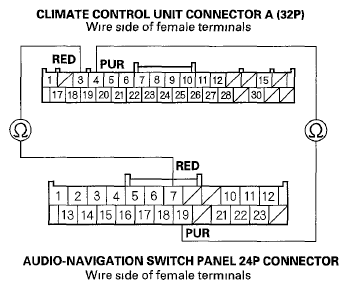

Fig 1: Checking Continuity Between Terminals Of Climate Control Unit Connector A (32P) And Audio-Navigation Switch Panel 24P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Go to step 3

NO -Repair open in the wire between climate control unit connector A (32P) and the audio-navigation switch panel 24P connector
Check for continuity between body ground and climate control unit connector A (32P) terminals No 3 and No 4 individually

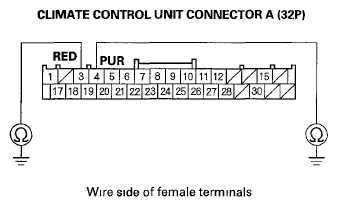

Fig 2: Checking Continuity Between Body Ground And Climate Control Unit Connector A (32P) Terminals 3 And 4
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Repair short to body ground in the wire between climate control unit connector A (32P) and the audio-navigation switch panel 24P connector

NO -Go to step 4
Reconnect climate control unit connector A (32P)
Connect the audio-navigation switch panel 24P connector terminals No 7 and No 19 with a jumper wire

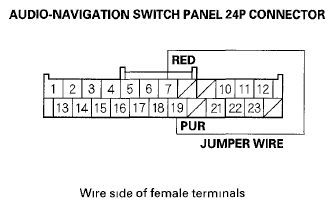

Fig 3: Connecting Audio-Navigation Switch Panel 24P Connector Terminals 7 And 19 With Jumper Wire
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode
Press and hold the front DEF button and OFF button

Is the front DEF button LED blinking?

YES -The audio-navigation switch panel is faulty, replace the audio-navigation switch panel (see AUDIO-NAVIGATION SWITCH PANEL REMOVAL/INSTALLATION )

NO -The climate control unit is faulty, replace the climate control unit (see CLIMATE CONTROL UNIT REMOVAL/INSTALLATION )
