WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
SRS components are located in this area Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service
NOTE:
- Put on gloves to protect your hands
- Take care not to scratch the dashboard and related parts
- Lay a shop towel under the parts when working on them to protect the face panel from scratches or other damage
- Eject all the discs before removing the audio unit to prevent damaging the CD player's load mechanism
- If you are replacing the audio unit, write down the audio presets (if possible), then enter them into the new audio unit
- Make sure you have the anti-theft codes for the audio system
- Remove the center dashboard trim (see CENTER TRIM REMOVAL/INSTALLATION )
- Remove the dashboard center vent (see DASHBOARD CENTER VENT REMOVAL/INSTALLATION )

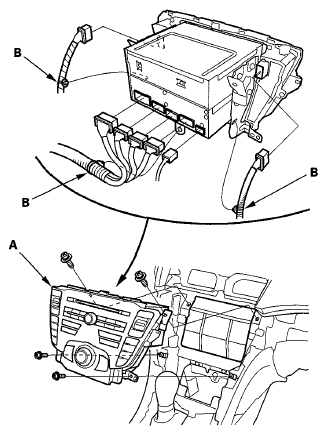

- Carefully remove the bolts, then pull the audio unit (A) out
Bolt Specifications: 5 x 0.8 mm, 4.4 N.m (0.45 kgf m, 3.2 lbf ft
- Disconnect the connectors, and detach the clips (B)
- Remove the climate control switches (see CLIMATE CONTROL UNIT REMOVAL/INSTALLATION )

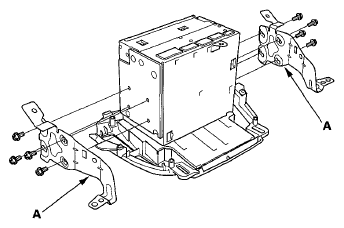

- Remove the bolts and stays (A)
Bolt Specifications: 5 x 0.8 mm, 3.7 N.m (0.38 kgf m, 2.7 lbf ft
- Install the audio unit in the reverse order of removal, and note these items
- Make sure all the connectors and the antenna lead are secure
- Enter the anti-theft codes for the audio system
- Give the new anti-theft codes to the client if the audio unit is replaced
