USB device does not function (without navigation)
- Check the vehicle battery condition first (see BATTERY TEST )
- Check the connectors for poor connections or loose terminals
- Make sure you have the client's USB device to use for testing
- Check the USB device requirement:
- Mass-storage class ready digital audio player with USB 2.0 port
- More than 256 MB of RAM
- Support MP3, WMA, and AAC (encoded with the iTunes) files, DRM files are not supported
- Not all players and player functions work with the USB jack Please see the owner's manual for more information Always test the clients USB device in a known-good vehicle of the same year and trim (if possible) Technologies change and are updated frequently which may result in that USB devices may work in newer vehicles, but not in older vehicles of the same model.
- If UNSUPPORTED appears on the display, the vehicle is OK, there is a software problem with the USB device.
- Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode
- Turn on the audio system.
- Press the HDD/AUX button, and check if it changes to USB modeNOTE: Do not connect the USB device.
Is USB NO DATA displayed in the audio display?
YES -Go to step 4
NO - Go to step 16
- Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.
- Connect the client's USB device to a known-good vehicle (same year/trim) that is equipped with a USB adapter, and check the USB device operation.
Is the USB device working properly in the known-good vehicle?
YES -Go to step 6
NO -If the audio display displays UNSUPPORTED or MEDIA ERROR, the USB device may not be unsupported or is defective. If the audio display displays USB NO MUSIC, the USB device may have no music files or wrong type music files are on the device. See the Owner's Manual for details on USB device requirements and approved file types.
- On the client's vehicle, connect the client's USB device to the USB port.
- Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.
- Turn on the audio system.
- Check the USB device operation in the client's vehicle.
Does the USB device work properly in the client's vehicle?
YES -The system is OK at this time. Inspect the connectors of the USB device, USB port and USB adapter for wear.
NO -Go to step 10
- Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.
- On the client's vehicle, remove the USB device.
- Disconnect USB adapter unit connector B (5P)

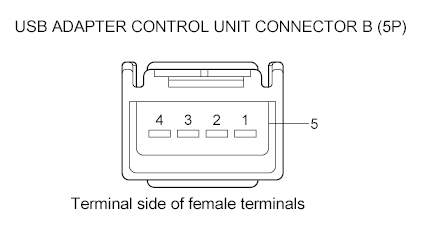

- Check for continuity between USB adapter control unit connector B (5P) and the USB port 5P connector according to the table below.USB ADAPTER UNIT CONNECTOR REFERENCE CHART
USB adapter unit connector USB jack B1 1 B2 2 B3 3 B4 4 B5 5 Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES -Replace the USB adapter unit (see USB ADAPTER CONTROL UNIT REPLACEMENT )
NO -Go to step 14
- Disconnect the USB adapter 5P connector.
- Check for continuity between the USB adapter 5P connector and the USB port 5P connector according to the table below.USB ADAPTER UNIT CONNECTOR REFERENCE CHART
USB adapter unit connector USB jack B1 1 B2 2 B3 3 B4 4 B5 5 Is there continuity?
YES -There is an open in the wire(s) between the USB adapter control unit and the USB adapter.
NO -Replace the affected shielded harness Replace the USB adapter unit (see USB ADAPTER CONTROL UNIT REPLACEMENT ), then recheck.
- Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.
- Measure the voltage between USB adapter control unit connector A (14P) terminal No. 1 and body ground.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there battery voltage?
YES -Go to step 19
NO -Go to step 18

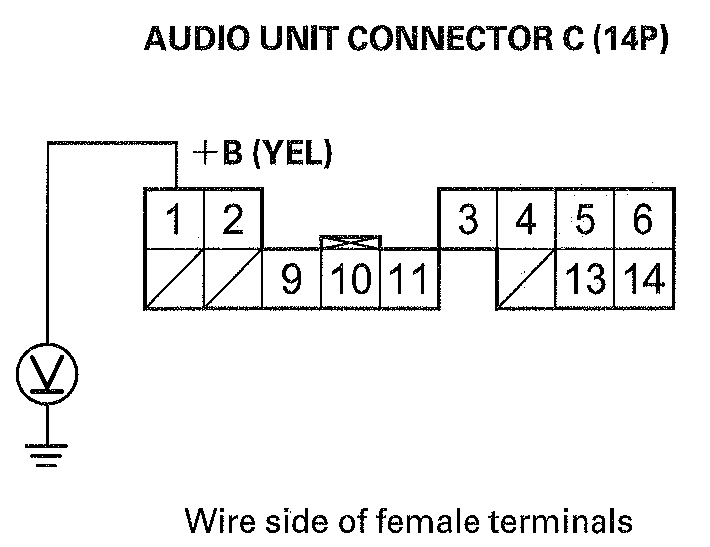

- Measure the voltage between audio unit connector C (14P) terminal No. 1 and body ground.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there battery voltage?
YES -Repair an open or high resistance in the wire between the USB adapter control unit connector A (14P) terminal No. 1 and audio unit connector C (14P) terminal No. 1.
NO - Replace the audio unit. (see AUDIO UNIT REMOVAL/INSTALLATION ).
- Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.
- Measure the voltage between USB adapter unit connector A (14P) terminal No 11 and body ground.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there less than 0.2 V?
YES -Go to step 21
NO -Repair an open or high resistance in the wire between USB adapter control unit connector A (14P) terminal No. 11 and audio unit connector C (14P) terminal No. 11.
- Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.
- Disconnect these items:
- Audio unit connector C (14P)
- USB adapter control unit connector A (14P)
- XM receiver connector A (14P)

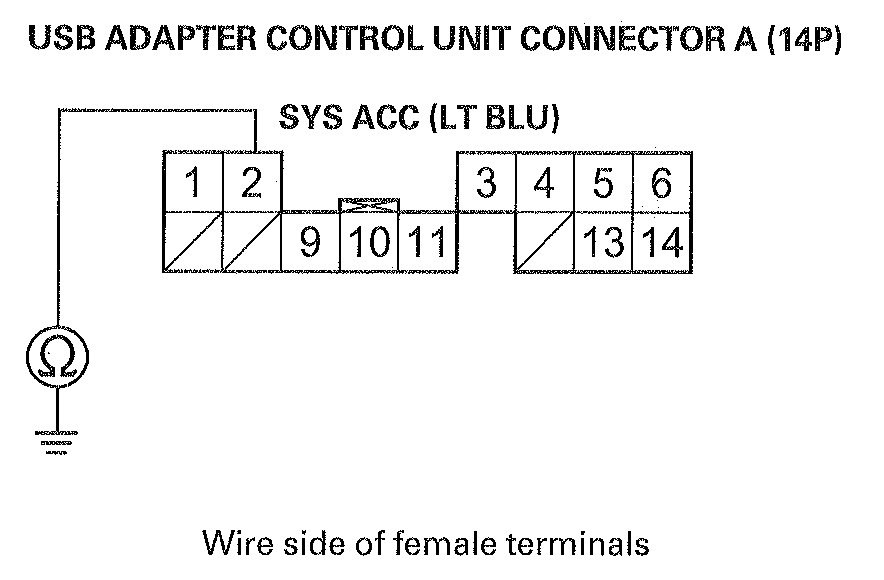

- Check for continuity between USB adapter control unit connector A (14P) terminal No. 2 and body ground.Fig 8: Checking For Continuity Between USB Adapter Control Unit Connector A (14P) Terminal No. 2 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES Repair a short to body ground in the wire between USB adapter control unit connector A (14P) terminal No. 2 and audio unit connector C (14P) terminal No. 2.
NO -Go to step 24

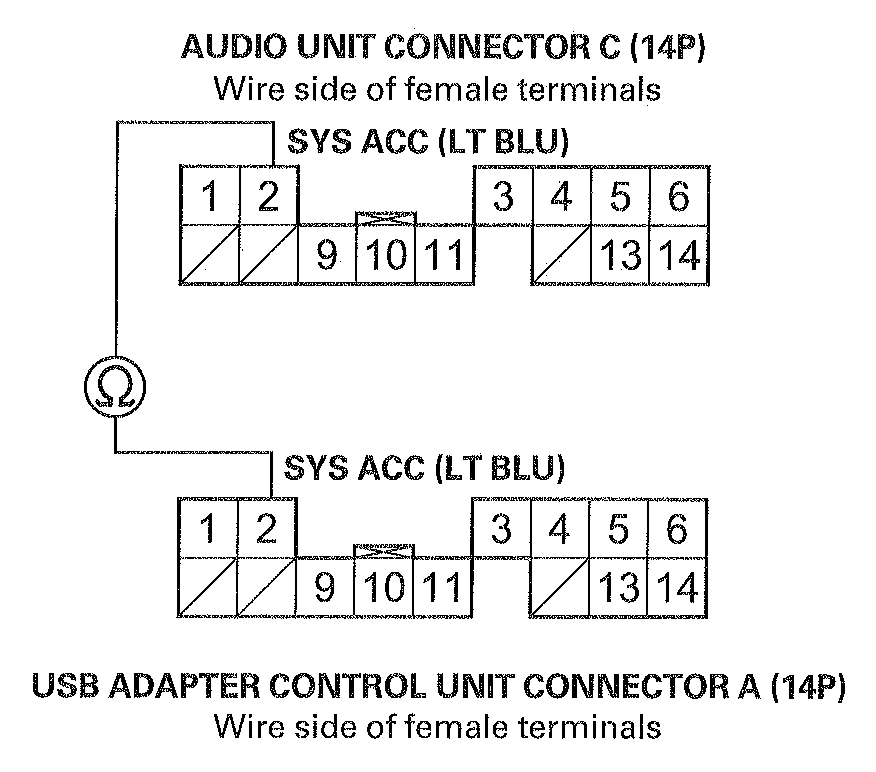

- Check for continuity between audio unit connector C (14P) terminal No. 2 and USB adapter control unit connector A (14P) terminal No. 2.Fig 9: Checking For Continuity Between Audio Unit Connector C (14P) Terminal No. 2 And USB Adapter Control Unit Connector A (14P) Terminal No. 2
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES -Go to step 25
NO -Repair an open in the wire between audio unit connector C (14P) terminal No. 2 and USB adapter control unit connector A (14P) terminal No. 2
- Check for continuity between USB adapter control unit connector A (14P) and audio unit connector C (14P) according to the table below.USB ADAPTER UNIT CONNECTOR REFERENCE CHART
USB adapter control unit connector Audio unit connector Wire color A9 C9 PNK A10 C10 BLU Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES -Go to step 26
NO -There is an open in the wire(s) between the audio unit and the USB adapter control unit. Replace the affected shielded harness.
- Disconnect the HandsFreeLink control unit 28P connector.
- Check for continuity between body ground and audio unit connector C (14P) according to the table below.USB ADAPTER UNIT CONNECTOR REFERENCE CHART
Audio unit connector Wire color C9 PNK C10 BLU Is there continuity?
YES -There is a short to body ground in the wire(s) between the audio unit and the USB adapter control unit. Replace the affected shielded harness.
NO -Go to step 28
- Check for continuity between the terminals of audio unit connector C (14P) according to the table belowTERMINAL REFERENCE CHART
From terminal To terminals C3 (GRY) C9 (PNK), C10 (BLU) C9 (PNK) C10 (BLU) Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity between any of the terminals?
YES -There is a short in the wires between the USB adapter control unit and the audio unit. Replace the affected shielded harness.
NO -Substitute a known-good USB adapter control unit, (see USB ADAPTER CONTROL UNIT REPLACEMENT ), and recheck. If the symptom/indication goes away, replace the original USB adapter control unit. If the symptom/indication is still present, Replace the audio unit (see AUDIO UNIT REMOVAL/INSTALLATION ).
