Security Hood Switch Test

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

Open the hood then remove the bulkhead cover (see ENGINE COMPARTMENT COVER REPLACEMENT )
Disconnect the 2P connector from the security hood switch

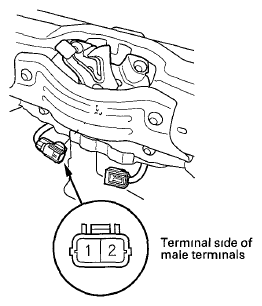

Fig 1: Identifying 2P Connector And Security Hood Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals
- There should be continuity between terminals No 1 and No 2 when the hood is opened (latch released)
- There should be no continuity between terminals No 1 and No 2 when the hood is closed (latch pushed down)
If the continuity is not as specified, replace the hood latch assembly (see HOOD LATCH REPLACEMENT )
