Section 79 (Cruise Control Systems)
>>
Circuit Diagram
>>
With Keyless Access System
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
With Keyless Access System
WARNING:
This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

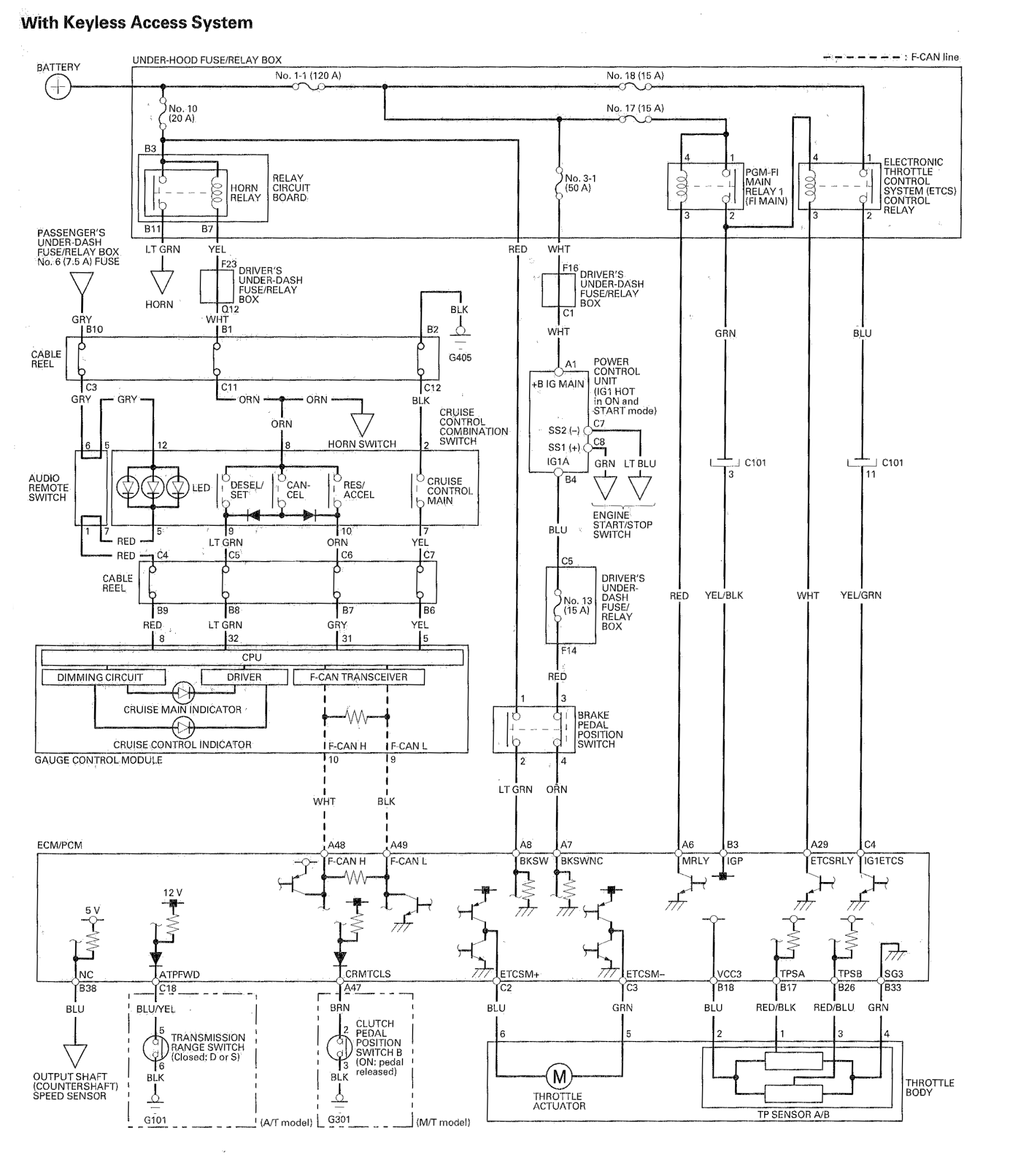

Fig 1: Cruise Control Circuit Diagram - With Keyless Access System
Courtesy of AMERICAN HONDA MOTOR CO., INC.
