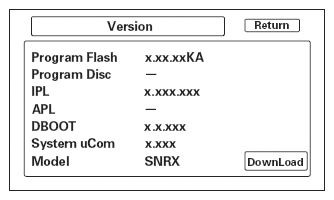

System Diagnostic Mode: Version
This screen displays the current version information for the navigation system software. In addition, this screen allows the loading of updated software if requested by the factory, or instructed by a Service Bulletin. Software may be loaded from a CD or a PC card.
- Program Flash: Displays the version of the navigation software in memory.
- Program Disc: If displayed, this value represents the version of the navi software on the navi DVD.NOTE: The last two letters of the Program Flash or DVD fields indicate which DVD is installed in the unit.
- IPL, APL, DBOOT, and System uCom, are all for factory use.
- Model: For this model, the field should begin with SNR
- Download: Do not touch, unless instructed by the factory.
Check any official Acura service website for more service information about navigation DVDs.
