Voice Control Switch Test

  1. Remove the voice control switch (see VOICE CONTROL SWITCH TEST  ).

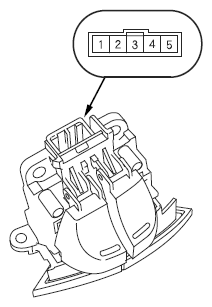

    Fig 1: Identifying Voice Control Switch Connector Terminals
    G06467489Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Measure the resistance between terminals No. 2 and No. 4 in each switch position according to the table.
    RESISTANCE REFERENCE CHART

    Position Resistance
    No button pressed About 10 kΩ
    TALK About 2.9 kΩ
    BACK About 680 Ω
  3. If the resistance is not as specified, replace the voice control switch (see VOICE CONTROL SWITCH TEST  ).
