2009
>>
CSX Base, Standard
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
VSA (Vehicle Stability Assist) System Components
>>
VSA System Features
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

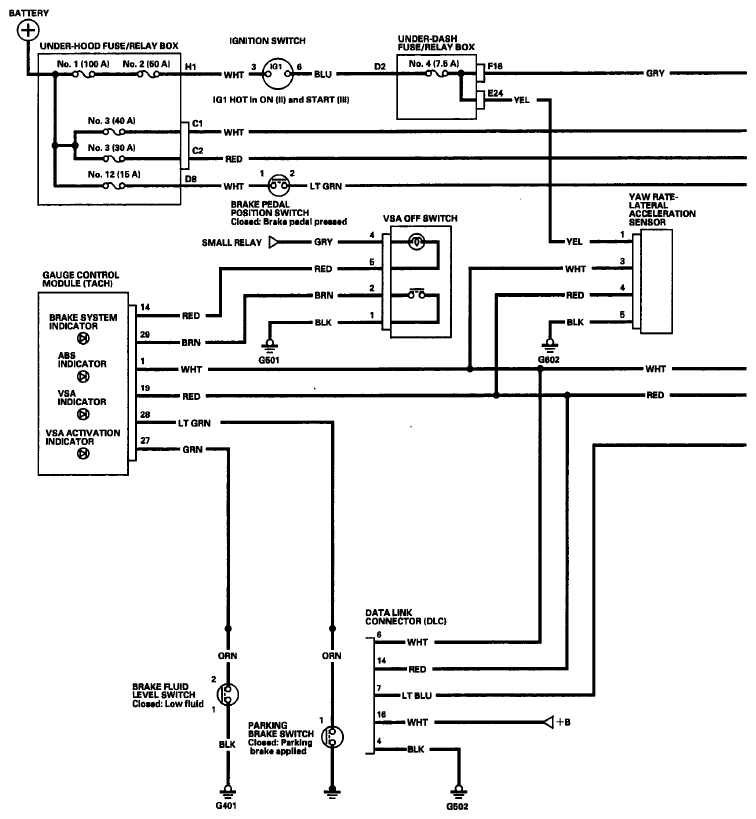

Fig 1: VSA System Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

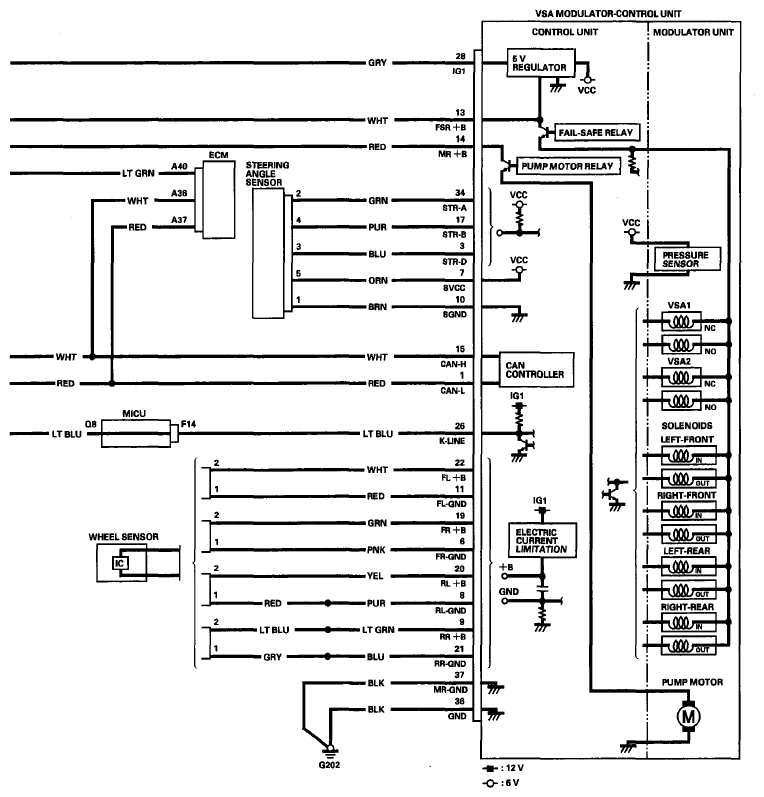

Fig 2: VSA System Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

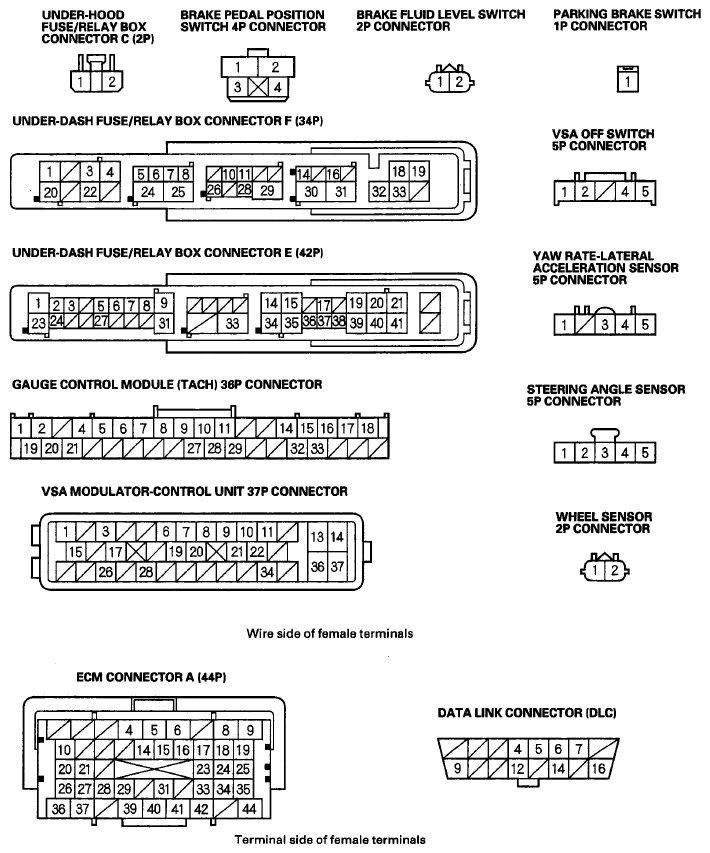

Fig 3: VSA System Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
