Driving Force Control

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

The driving force control distributes the power based on the driver's inputs It distributes torque to the front and rear wheels based on the throttle opening and the available engine torque output When turning, torque is applied to the rear wheels independently based on the lateral G input and the direction of the turn This generates an inward yaw movement to help steer the vehicle around the turn

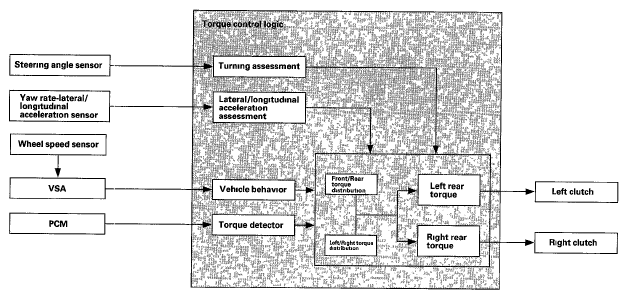

Fig 1: Torque Control Logic System Diagram
G05991303Courtesy of AMERICAN HONDA MOTOR CO., INC.
