Save Error History when Replacing the Audio-Navigation Unit

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

When replacing the audio-navigation unit, a USB drive is included to save the error history (navigation DTCs) The USB drive comes loaded with a software program to automatically save the DTCs The USB drive must be returned with the defective audio-navigation unit

NOTE: Save the error history before replacing the audio-navigation unit

Start the vehicle, and make sure the map screen is displayed
Plug the included USB drive into the USB jack that is located in the armrest
NOTE: The USB drive comes loaded with a script that saves the error history automatically
When prompted, press the ENTER button to copy the error history

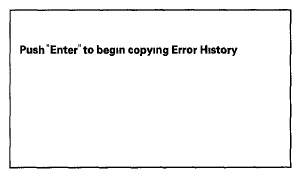

Fig 1: Screen Display - Copying Error History
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Wait for the USB drive to copy the error history

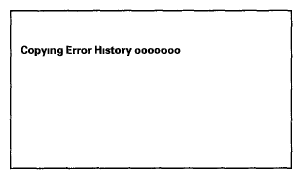

Fig 2: Screen Display - Copying Error History
Courtesy of AMERICAN HONDA MOTOR CO., INC.
After the error history is copied, the instructions to remove the USB drive is displayed

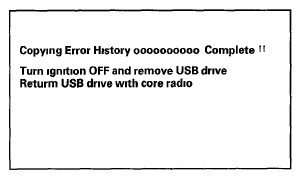

Fig 3: Screen Display - Copying Error History Complete
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Replace the audio-navigation unit (see AUDIO-NAVIGATION UNIT REMOVAL/INSTALLATION )
