Air Mix Control Motor Replacement

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the 7P connector (A) from the air mix control motor (B). Remove the rod (C) of the air mix control motor from the air mix control linkage (D). Remove the self-tapping screws and the air mix control motor from the heater unit.

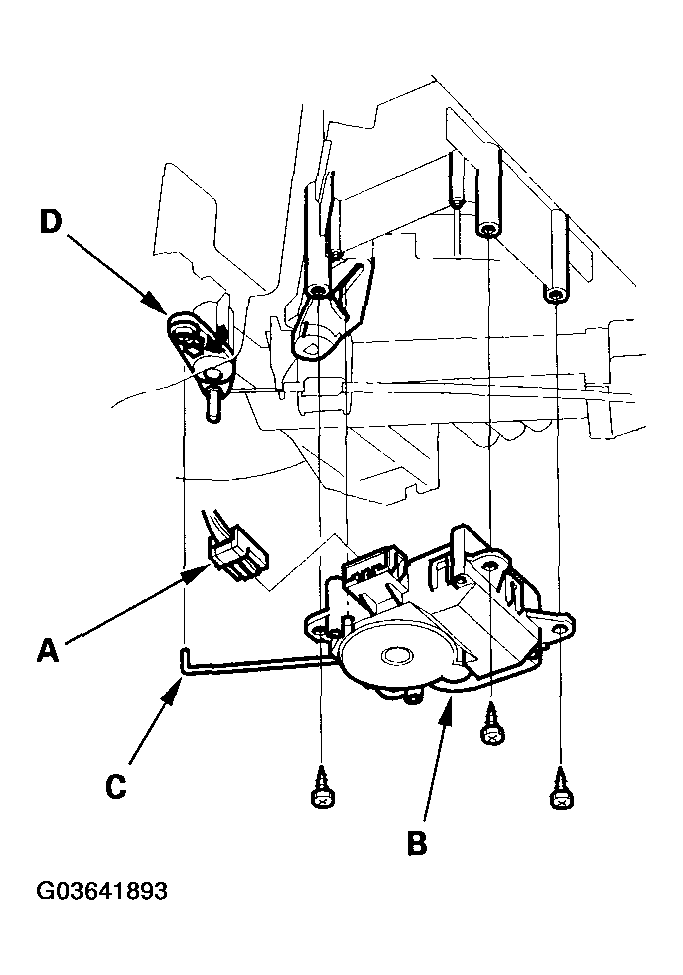

Fig 1: Removing Self-Tapping Screws And Air Mix Control Motor From Heater Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the motor in the reverse order of removal. Make sure the rod is properly engaged with the linkage. After installation, make sure the motor runs smoothly.
