Exploded View: Notes

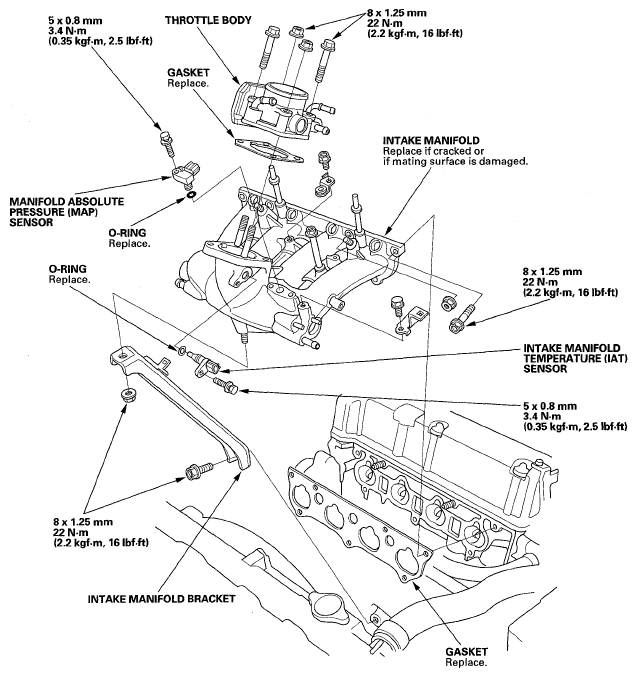

Fig 1: Intake Manifold Replacement Components With Torque Specifications
G05446853Courtesy of AMERICAN HONDA MOTOR CO., INC.
