Combination Light Switch Test/Replacement

Combination Light Switch Test/Replacement

1. Remove the driver's dashboard undercover, Driver's Dashboard Undercover Removal/Installation and the driver's dashboard lower cover. Driver's Dashboard Lower Cover Removal/Installation

2. Remove the steering column covers. Steering Column Removal and Installation

3. Disconnect the combination light switch 12P connector (A) from the wiper/washer switch (B).

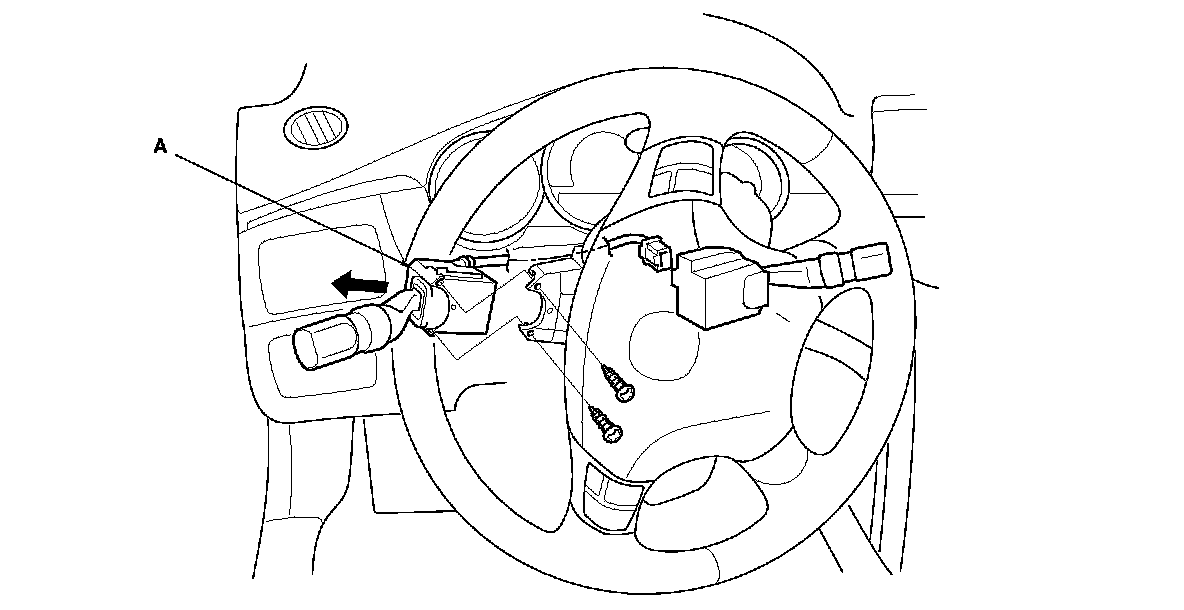

4. Remove the two screws, then slide out the combination light switch (A).






5. Inspect the connector terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.

- If the terminals look OK, check for continuity between the terminals in each switch position according to the tables.

6. If the continuity is not as specified, replace the switch.
