Display Unit

The display unit uses a liquid crystal display (LCD). The LCD is a 8-inch-diagonal, thin film transistor (TFT), strip type with 336,960 picture elements. The color film and fluorescent light are laid out on the back of the liquid crystal film.

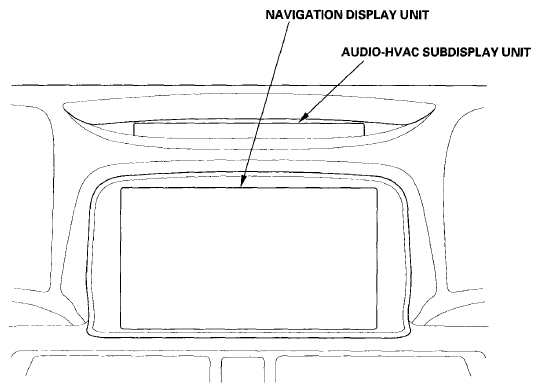

Fig 1: Navigation Display Unit And Audio-HAVC Subdisplay Unit

Courtesy of AMERICAN HONDA MOTOR CO., INC.
