Save Users Memory: Notes

When replacing the navigation unit, this function allows the dealer to transfer the client's personal data to the new navigation unit.

This is similar to saving and entering the client's audio presets when replacing an audio unit. The transferred information includes their Setup settings and personal addresses. The dealer inserts a PC card (like the PC card in the HDS), and then selects the Save Users Memory function. The two functions in this diagnostic screen are Export and Import. Export saves the client's data to the PC card, and Import moves the PC card files to the new navigation core.

See the FAQs below for information regarding PC cards, and how to use this function.

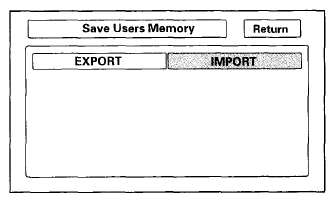

Fig 1: Screen Display - Save Users Memory
G06163056Courtesy of AMERICAN HONDA MOTOR CO., INC.
