Driver's MPCS Unit

  1. Turn the ignition switch to LOCK (0).
  2. Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  3. Disconnect driver's MPCS unit connector A (40P).

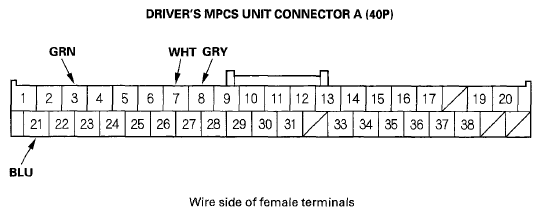

    Fig 1: Identifying Driver's MPCS Unit Connector A (40P)
    G06162852Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Inspect the connector and socket terminals to be sure they are all making good contact.
    • If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.
    • If the terminals look OK, go to step  5.
  5. With the connector still disconnected, do these input tests at the connector.
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    • If all the input tests prove OK, go to step  6.
    WIRE TEST CONDITION REFERENCE TABLE

    Cavity Wire Test condition Test: Desired result Possible cause if desired result is not obtained
    A8 GRY Driver's under-dash fuse/relay box connector H (14P) and power window master switch 6P connector disconnected Check for continuity between terminal A8 and driver's under-dash fuse/relay box connector H (14P) terminal No. 4:
    There should be continuity.    		 An open in the wire
    Check for continuity to ground:
    There should be no continuity.    		 A short to ground in the wire
  6. Reconnect the connector to the driver's MPCS unit, turn the ignition switch to ON (II), and make these tests at the connector.
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    WIRE TEST CONDITION REFERENCE TABLE

    Cavity Wire Test condition Test: Desired result Possible cause if desired result is not obtained
    A7 WHT Under all conditions Measure the voltage to ground:
    There should be battery voltage.
    • Blown No. 15 (40 A) fuse in the under-hood fuse/relay box
    • Blown No. 7 (10 A) fuse in the driver's under-dash fuse/relay box
    • Faulty driver's under-dash fuse/relay box
    • An open in the wire
    A3 GRN Driver's door open Measure the voltage to ground:
    There should be less than 0.1 V.
    • Faulty driver's door switch
    • An open in the wire
    Driver's door closed Measure the voltage to ground:
    There should be 5 V or more.
    • Faulty driver's door switch
    • A short to ground in the wire
    A21 BLU Driver's door key cylinder in UNLOCK Measure the voltage to ground:
    There should be less than 0.1 V.
    • Faulty driver's door key cylinder switch
    • An open in the wire
    Driver's door key cylinder in neutral or LOCK Measure the voltage to ground:
    There should be 5 V or more.
    • Faulty driver's door key cylinder switch
    • A short to ground in the wire
