Acura
>>
2009
>>
RL
>>
Repair and Diagnosis (Single Page)
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Connector End Views
>>
Connector End Views
>>
Ignition Switch Control Unit Connector End View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Ignition Switch Control Unit Connector End View

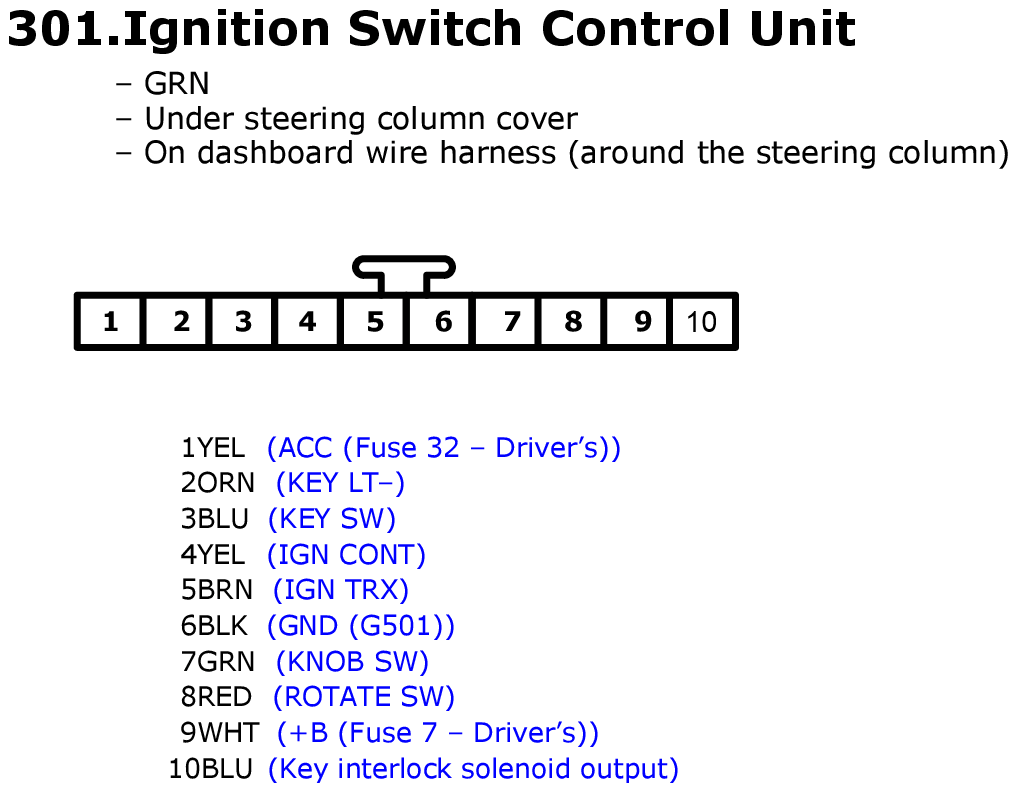

Fig 1: Ignition Switch Control Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
