ECT Sensor 1 Connector End View

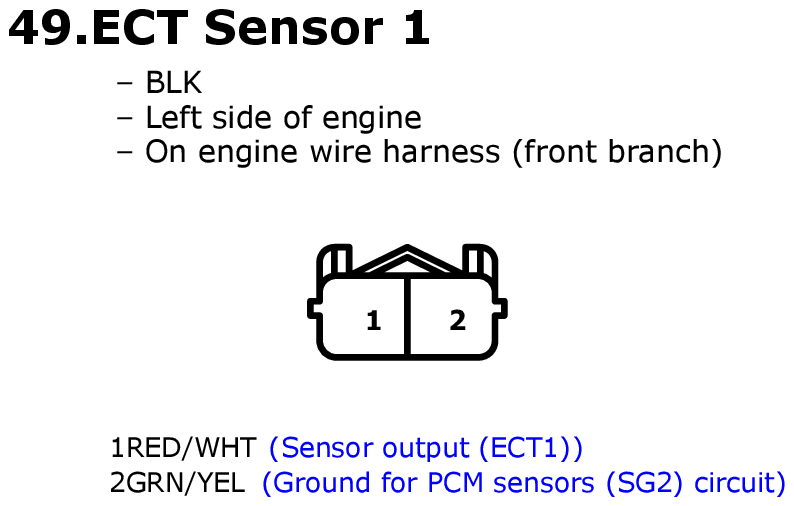

Fig 1: ECT Sensor 1 Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
