Home >> Acura >> 2009 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Description and Operation >> How The Multiplex Integrated Control System Circuit Works
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

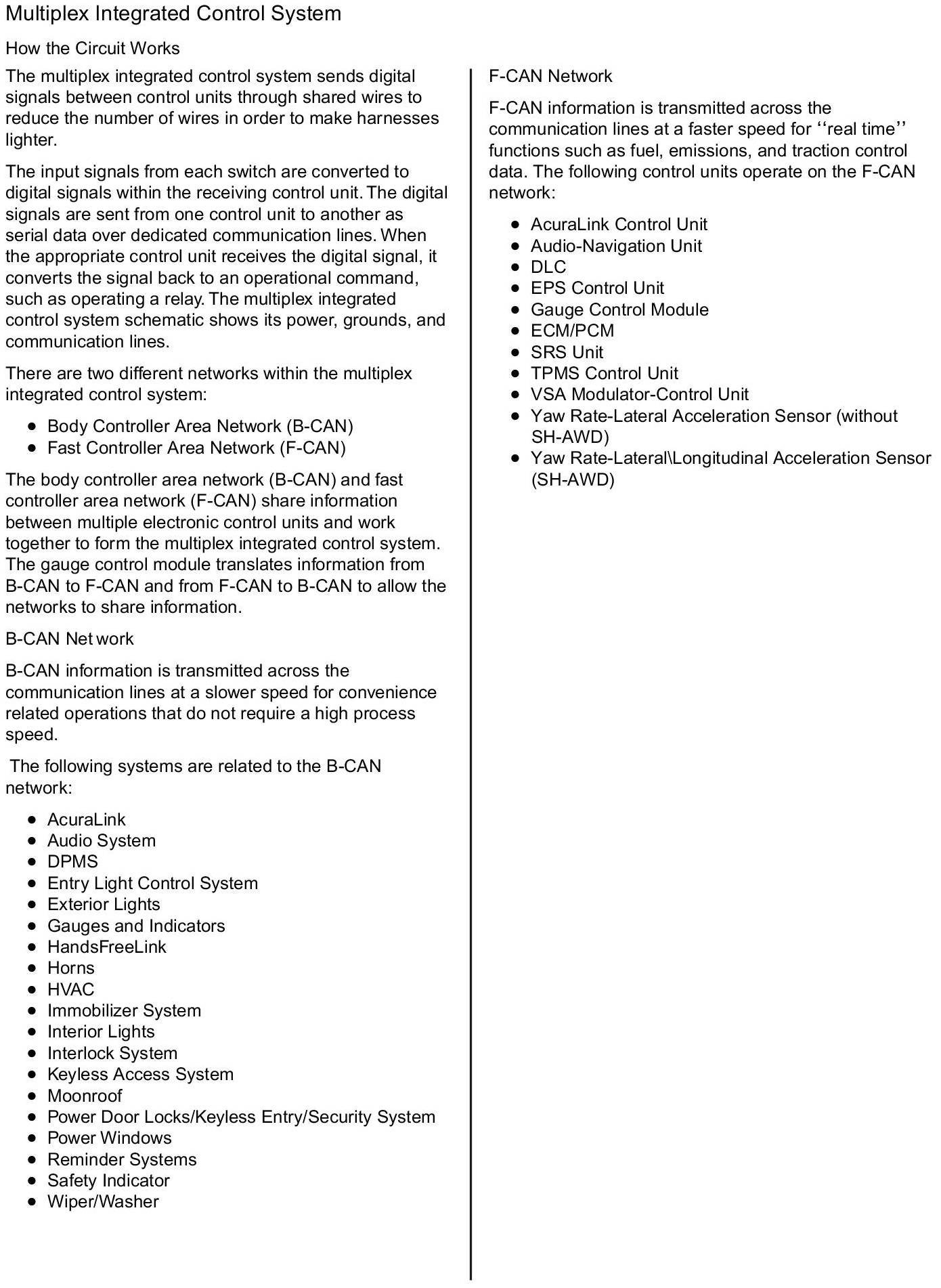

How The Multiplex Integrated Control System Circuit Works
