VSA Modulator-Control Unit Connector End View (View 312)
BLK/WHT
Right Side of Engine Compartment
On Right Engine Compartment Wire Harness

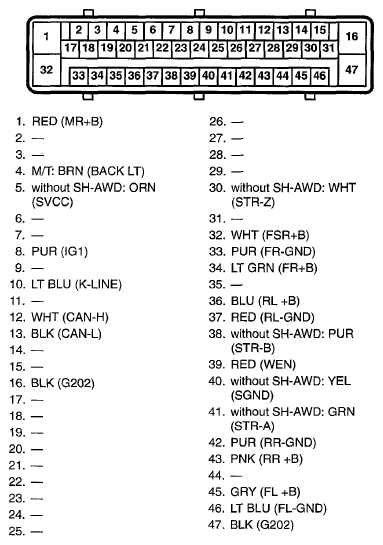

Fig 1: VSA Modulator-Control Unit Connector Terminal (View 312)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
