Component Location Index

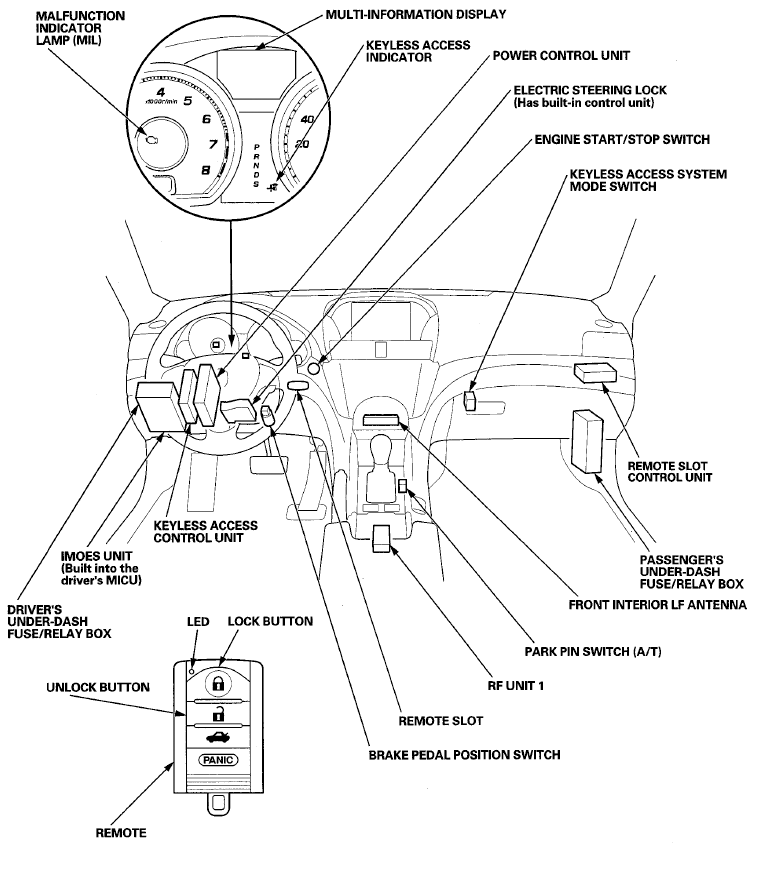

Fig 1: Identifying Keyless Access System Component Location (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

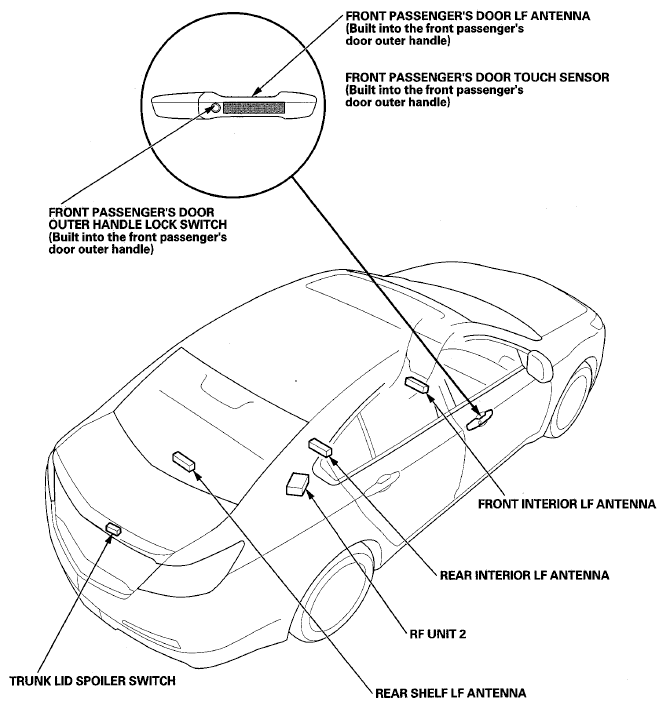

Fig 2: Identifying Keyless Access System Component Location (2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

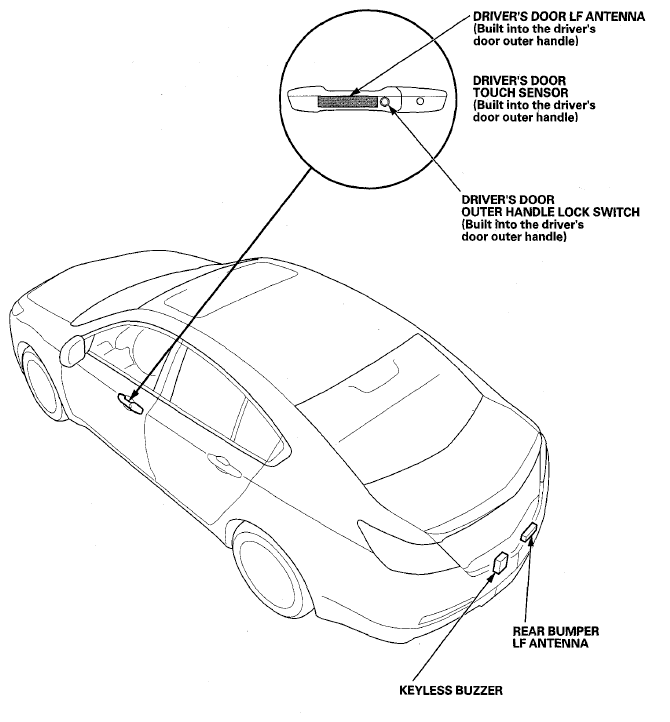

Fig 3: Identifying Keyless Access System Component Location (3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Identifying Keyless Access System Component Location (4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
