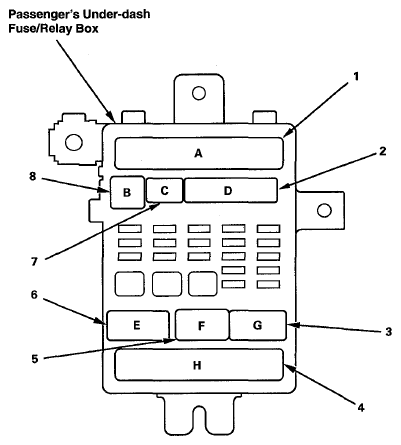

Connector-To-Fuse/Relay Box Index
| Ref | Socket | Cavities | Connects to | Notes |
|---|---|---|---|---|
| 1 | A | 38 | Dashboard Wire Harness (see CONSOLE SUB-HARNESS ) | |
| 2 | D | 28 | Audio Wire Harness (see AUDIO WIRE HARNESS ) | |
| 3 | G | 16 | Right Side Wire Harness (see RIGHT SIDE WIRE HARNESS (WITHOUT SH-AWD) ) | without SH-AWD |
| 4 | H | 38 | Right Side Wire Harness (see REAR WINDOW DEFOGGER GROUND WIRE (SH-AWD) ) | SH-AWD |
| 5 | F | 2 | Not Used | |
| 6 | E | 18 | Right Engine Compartment Wire Harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS ) | |
| 7 | C | 12 | Not Used | |
| 8 | B | 1 | Right Engine Compartment Wire Harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS ) |
