Oil Jet Replacement

  1. Remove the crankshaft from the engine block (see CRANKSHAFT AND PISTON REMOVAL )
  2. Remove the oil jet bolt (A), then remove the oil jet (B)

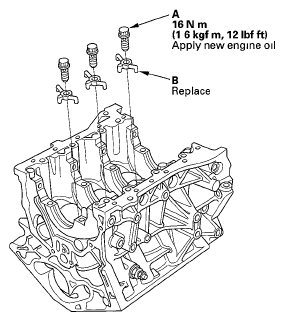

    Fig 1: Oil Jet Bolt And Oil Jet With Torque Specification
    G05987106Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Carefully install the new oil jet and tighten the oil jet bolt
  4. Install the crankshaft (see CRANKSHAFT AND PISTON INSTALLATION )
