Rocker Arm Oil Control Valve Removal/Installation

  1. Remove the frame brace (see FRAME BRACE REPLACEMENT )
  2. Disconnect the rocker arm oil control solenoid connector (A) and the rocker arm oil pressure switch connector (B)

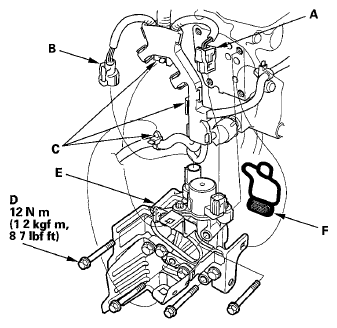

    Fig 1: Rocker Arm Oil Control Solenoid Connector With Torque Specification
    G05992465Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the harness clamps (C) and the bolts (D)
  4. Remove the rocker arm oil control valve assembly (E) and the rocker arm oil control valve filter (F)
  5. Remove the engine wire harness brackets (A) from the rocker arm oil control valve (B)

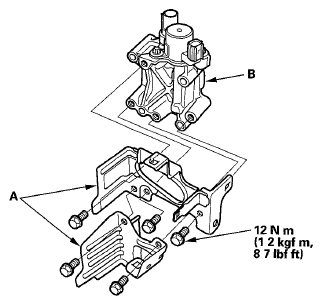

    Fig 2: Engine Wire Harness Brackets And Rocker Arm Oil Control Valve With Torque Specification
    G05992466Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Install the parts in the reverse order of removal with a new rocker arm oil control valve filter
