Throttle Body Disassembly/Reassembly

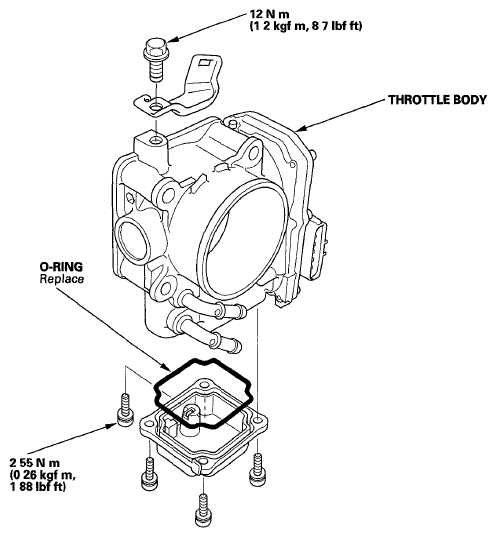

Fig 1: Throttle Body With Torque Specifications
G05992570Courtesy of AMERICAN HONDA MOTOR CO., INC.
