CMP Sensor B Replacement

Disconnect the connector (A) and hoses (B) from the EVAP canister purge valve (C), then remove the EVAP canister purge valve assembly

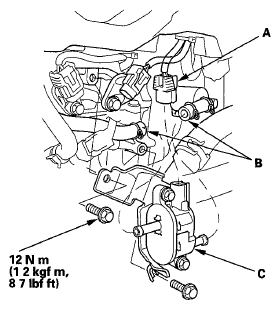

Fig 1: Connector, Hoses, EVAP Canister Purge Valve With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the CMP sensor B connector (A)

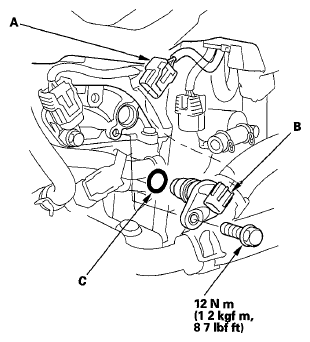

Fig 2: CMP Sensor B Connector, O-Ring With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove CMP sensor B
Install the parts in the reverse order of removal with a new O-ring (C).
