MAF Sensor/IAT Sensor Replacement

  1. Disconnect the MAF sensor/IAT sensor connector (A)

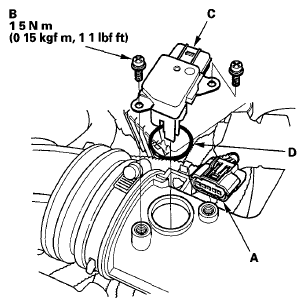

    Fig 1: MAF/IAT Sensor, MAF/IAT Sensor Connector With Torque Specification
    G05992362Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the screws (B)
  3. Remove the MAF sensor/IAT sensor (C)
  4. Install the parts in the reverse order of removal with a new O-ring (D)
