Pressure intensifying mode

VSA NO valve closed, VSA NC valve open, inlet valve open, outlet valve closed, pump motor ON.

The reservoir and the master cylinder fluid is pumped out by the pump, through the damping chamber, to the front caliper.

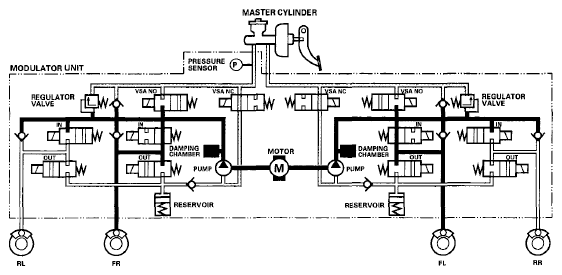

Fig 1: VSA System Circuit Diagram (Pressure Intensifying Mode)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
