Wheel Speed Sensor Replacement

NOTE:
  • Install the sensor carefully to avoid twisting the wires.
  • Replace the clamps (A) when the wheel speed sensors are removed or replaced.

Front

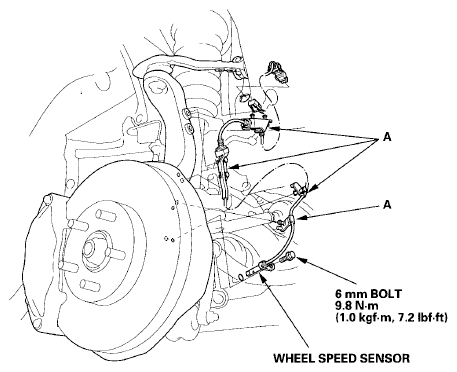

Fig 1: Wheel Speed Sensor And Bolt (Front) With Torque Specifications
G06160496Courtesy of AMERICAN HONDA MOTOR CO., INC.

Rear

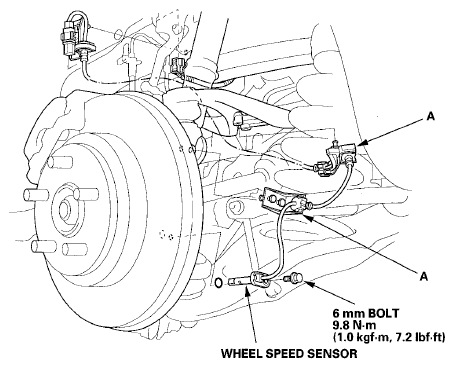

Fig 2: Wheel Speed Sensor And Bolt (Rear) With Torque Specifications
G06160497Courtesy of AMERICAN HONDA MOTOR CO., INC.
