View 250 - Cruise Control Combination/Select/Reset/Information Switch Connector View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

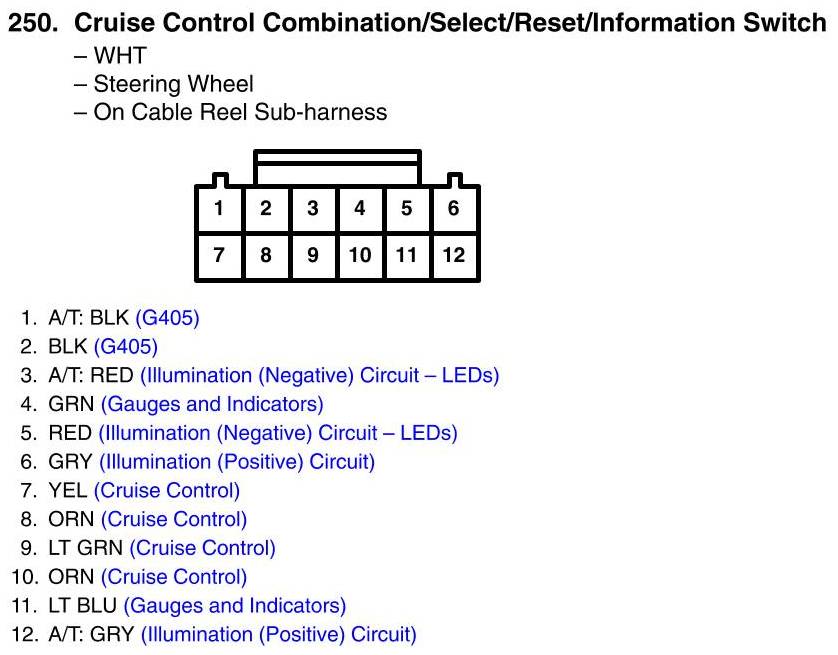

View 250 - Cruise Control Combination/Select/Reset/Information Switch Connector View
