System Indicator: Notes
This system has four indicators:
- ABS indicator (A)
- Brake system indicator (B)
- VSA indicator (C)
- VSA activation indicator (D) ('09 model)
- VSA OFF indicator ('10-11 Model) (E)
'09 model

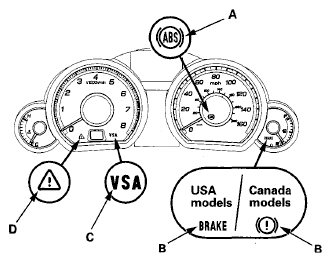

Fig 1: Identifying ABS Indicator, Brake System Indicator, VSA Indicator, VSA Activation Indicator And VSA OFF Indicator - 09 ModelCourtesy of AMERICAN HONDA MOTOR CO., INC.
'10-11 model

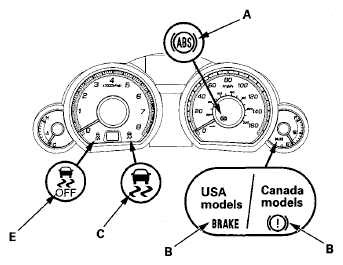

Fig 2: Identifying ABS Indicator, Brake System Indicator, VSA Indicator, VSA Activation Indicator And VSA OFF Indicator - (10-11 Model)Courtesy of AMERICAN HONDA MOTOR CO., INC.
When the system detects a problem, it will turn the appropriate indicators on. Depending on the failure, the VSA modulator-control unit determines which indicators are turned on.
When the system is OK, each indicator comes on for about 2 seconds after turning the ignition switch to ON (II), or press the engine start/stop button to select the ON mode, then goes off.
