DTC B1828: Power Seat Recline Motor Pulse Error
- Clear the DTCs with the HDS.
- Turn the ignition switch to LOCK (0) and then back to ON (II).
- Operate the power seat adjustment switch in all directions for more than 1 second each.NOTE: DTC B1828 is stored when the recline switch is operated more than 1 second after the seat moves to the most forward or backward position, even when the system is OK.
- Check for the DTCs with the HDS.
Is DTC B1828 indicated?
YES -Go to step 5.
NO -Intermittent failure, the system is OK at this time. Check for loose or poor connections.
- Clear the DTCs with the HDS.
Is DTC B1836 also indicated?
YES -Go to the DTC B1836 TROUBLESHOOTING .
NO -Go to step 6.
- Clear the DTCs with the HDS.
Are DTCs B1825, B1826, and/or B1827 also indicated?
YES -Go to step 17.
NO -Go to step 7.
- Turn the ignition switch to LOCK (0) and then back to ON (II).
- Operate the recline switch for 2 seconds, and check the recline motor operation.
Does the recline motor run smoothly?
YES -Go to step 9.
NO -Go to step 26.
- Turn the ignition switch to LOCK (0).
- Disconnect power seat control unit connector A (40P).
- Disconnect the recline motor/position sensor 5P connector.

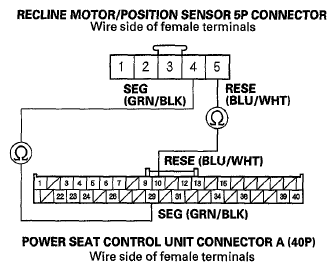

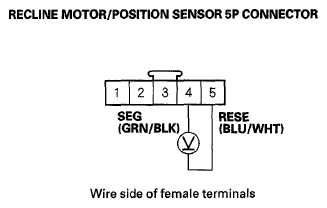

- Check for continuity between power seat control unit connector A (40P) terminals No. 10 and No. 29 and recline motor/position sensor 5P connector terminals No. 5 and No. 4 respectively.Fig 1: Checking Continuity Between Power Seat Control Unit Connector A (40P) Terminals 10 And 29 And Recline Motor
Is there continuity?
YES -Go to step 13.
NO -Repair an open in the wire.

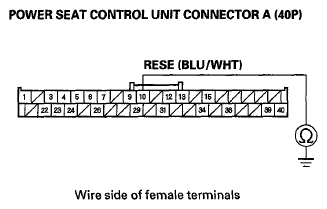

- Check for continuity between body ground and power seat control unit connector A (40P) terminal No. 10.Fig 2: Checking Continuity Between Body Ground And Power Seat Control Unit Connector A (40P) Terminal No. 10
Is there continuity?
YES -Repair a short to ground in the wire.
NO -Go to step 14.
- Reconnect power seat control unit connector A (40P).
- Turn the ignition switch to ON (II).
- Measure the voltage between recline motor/position sensor 5P connector terminals No. 5 (+) and No. 4 (-).
Is there about 5 V?
YES -Replace the recline motor/position sensor (see FRONT SEAT RECLINE MOTOR REPLACEMENT ).
NO -If there is no voltage, replace the power seat control unit (see POWER SEAT CONTROL UNIT INPUT TEST/REPLACEMENT ). If there is battery voltage, repair a short in the wire (sensor line).
- Turn the ignition switch to LOCK (0).
- Disconnect power seat control unit connector A (40P).
- Disconnect the recline motor/position sensor 5P connector.

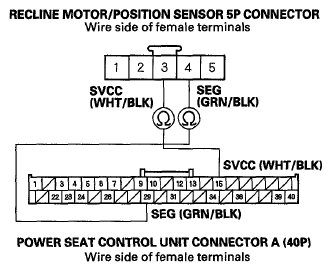

- Check for continuity between power seat control unit connector A (40P) terminals No. 15 and No. 29 and recline motor/position sensor 5P connector terminals No. 3 and No. 4 respectively.Fig 4: Checking Continuity Between Power Seat Control Unit Connector A (40P) Terminals No. 15 And No. 29
Is there continuity?
YES -Go to step 21.
NO -Repair an open in the wire.
- Disconnect the 5P connector from the slide motor/position sensor, front up-down motor/position sensor, and rear up-down motor/position sensor.

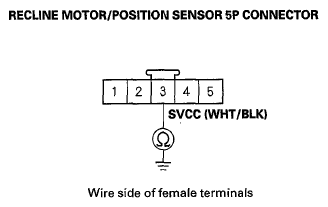

- Check for continuity between body ground and recline motor/position sensor 5P connector terminal No. 3.Fig 5: Checking Continuity Between Body Ground And Recline Motor/Position Sensor 5P Connector Terminal 3
Is there continuity?
YES -Repair a short to ground in the wire.
NO -Go to step 23.
- Reconnect power seat control unit connector A (40P).
- Turn the ignition switch to ON (II).

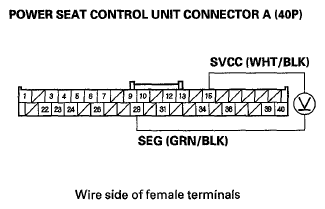

- Measure the voltage between power seat control unit connector A (40P) terminals No. 15 and No. 29.Fig 6: Measuring Voltage Between Power Seat Control Unit Connector A (40P) Terminals No. 15 And No. 29
Is there battery voltage when the recline switch is operated?
YES -Replace the recline motor/position sensor (see FRONT SEAT RECLINE MOTOR REPLACEMENT ).
NO -Replace the power seat control unit (see POWER SEAT CONTROL UNIT INPUT TEST/REPLACEMENT ).
- Turn the ignition switch to LOCK (0).
- Disconnect power seat control unit connector B (18P).
- Disconnect the recline motor/position sensor 5P connector.

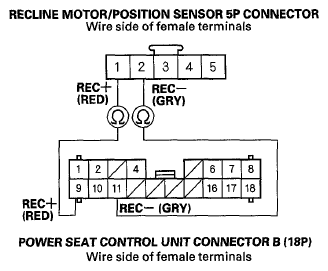

- Check for continuity between power seat control unit connector B (18P) terminals No. 9 and No. 11 and recline motor/position sensor 5P connector terminals No. 1 and No. 2 respectively.
Is there continuity?
YES -Go to step 30.
NO -Repair an open in the wire.

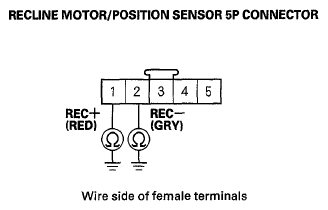

- Check for continuity between body ground and recline motor/position sensor 5P connector terminals No. 1 and No. 2 individually.Fig 8: Checking Continuity Between Body Ground And Recline Motor/Position Sensor 5P Connector Terminals No. 1 And No. 2
Is there continuity?
YES -Repair a short to ground in the wire.
NO -Go to step 31.
- Test the recline motor (see DRIVER'S POWER SEAT MOTOR TEST
).
Is the motor OK?
YES -Replace the power seat control unit (see POWER SEAT CONTROL UNIT INPUT TEST/REPLACEMENT ).
NO -Replace the recline motor/position sensor (see FRONT SEAT RECLINE MOTOR REPLACEMENT ).
