Driver's Power Seat Motor Test

Remove the driver's seat (see FRONT SEAT REMOVAL/INSTALLATION ).
Disconnect the connector from each power seat motor.
NOTE: All connectors are terminal side of male terminals.

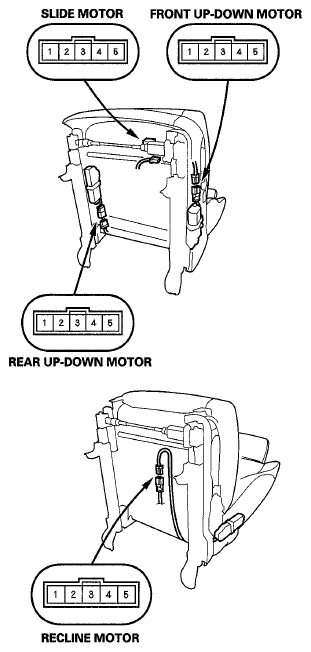

Fig 1: Identifying Driver's Power Seat Motor Connector
Test each motor by connecting power and ground according to the table. When the motor stops running, disconnect battery power immediately.

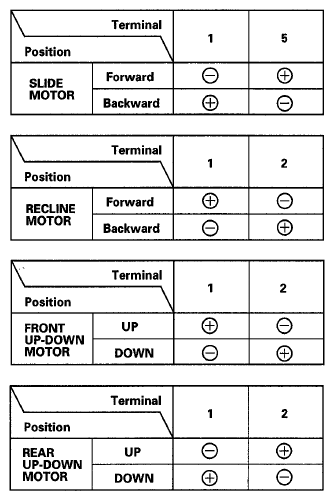

Fig 2: Terminal Position Chart
If the motor does not run or fails to run smoothly, replace:
- Slide motor (see FRONT SEAT SLIDE MOTOR REPLACEMENT )
- Front up-down motor (see FRONT SEAT UP-DOWN MOTOR REPLACEMENT )
- Rear up-down motor (see REAR UP-DOWN MOTOR - DRIVER'S SEAT )
- Recline motor (see FRONT SEAT RECLINE MOTOR REPLACEMENT )
