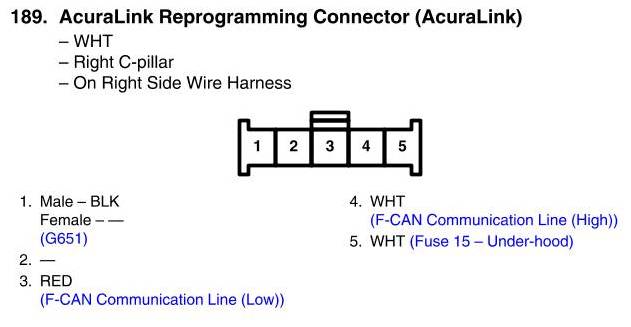

View 189 - AcuraLink Reprogramming Connector Connector View (AcuraLink)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
View 189 - AcuraLink Reprogramming Connector Connector View (AcuraLink)
