View 192 - Driver's Power Seat Front Up-Down Motor/Position Sensor Connector View (DPMS)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

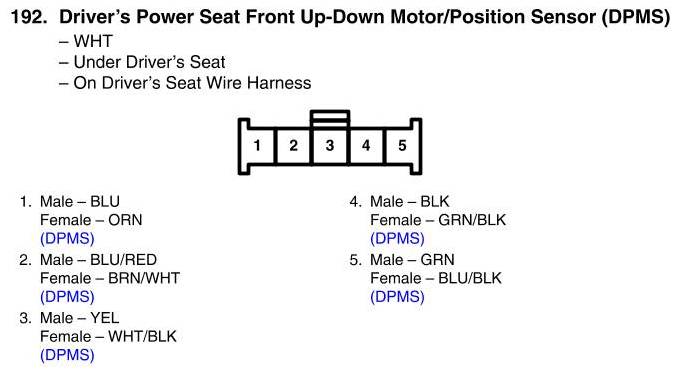

View 192 - Driver's Power Seat Front Up-Down Motor/Position Sensor Connector View (DPMS)
