Timing Component Alignment Marks: Locations

Timing Marks

Covers Off:

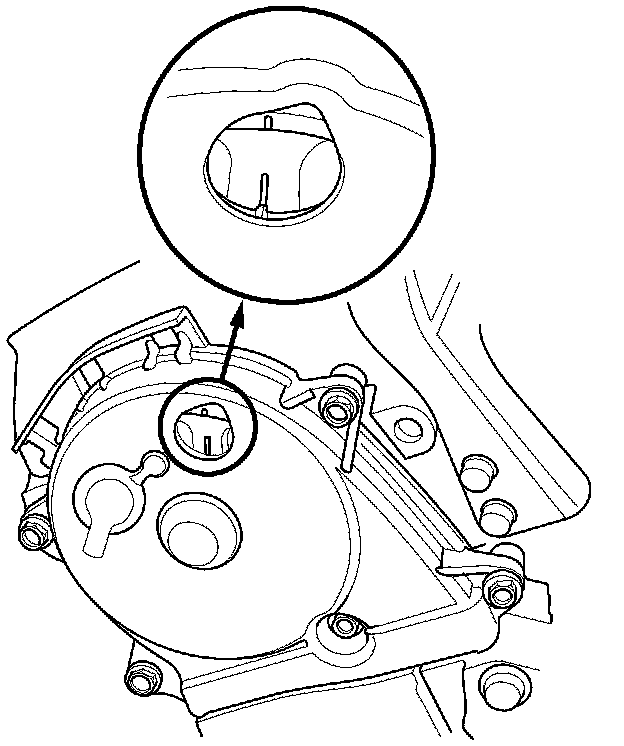

Timing Belt Drive Pulley

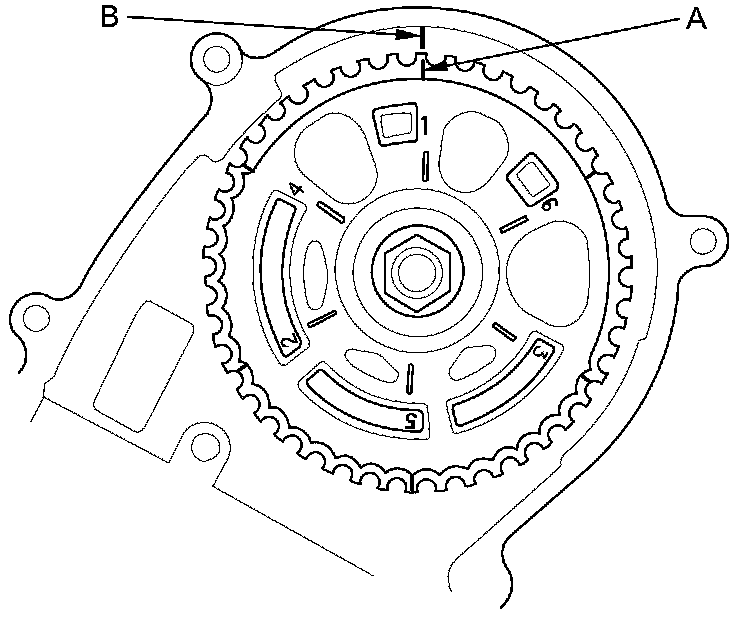

Camshaft Pulleys


Covers On:

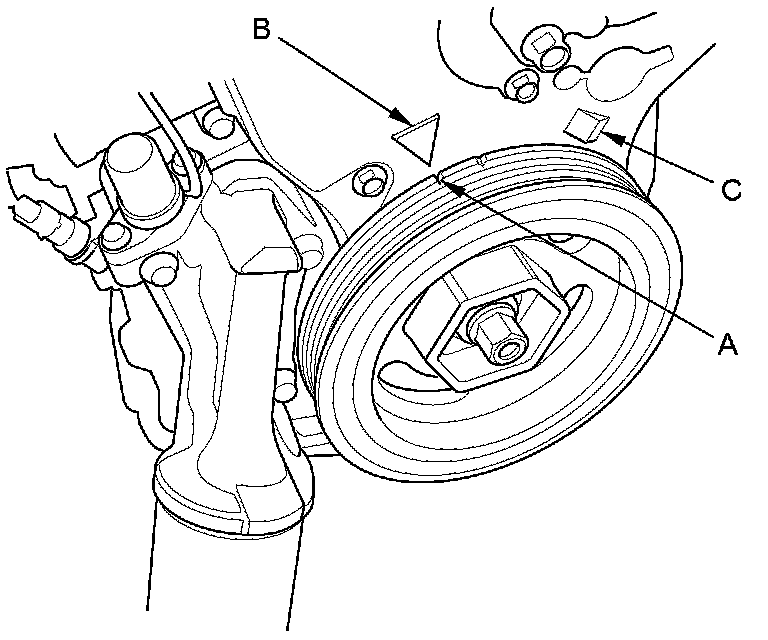

Crankshaft Pulley









Camshaft Pulleys
