DTC B1825: Slide Pulse Error (no change in pulse for 1 second)

NOTE: If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A (see TROUBLESHOOTING - B-CAN SYSTEM DIAGNOSIS TEST MODE A ).
  1. Clear the DTCs with the HDS.
  2. Turn the ignition switch to LOCK (0) and then back to ON (II).
  3. Operate the power seat adjustment switch in all directions for more than 2 seconds each.
    NOTE: DTC B1825 is stored when the slide switch is operated more than 1 second after the seat moves to the most forward or most rearward position, even when the system is OK.
  4. Check for the DTCs with the HDS.

    Is DTC B1825 indicated?

    YES  -Go to step 5.

    NO  -Intermittent failure, the system is OK at this time. Check for loose or poor connections.

  5. Clear the DTCs with the HDS.

    Is DTC B1836 also indicated?

    YES  -Go to the DTC B1836 troubleshooting (see DTC B1836: POWER SEAT POSITION SENSOR CIRCUIT SHORT  ).

    NO  -Go to step 6.

  6. Clear the DTCs with the HDS.

    Are DTCs B1826, B1827, and/or B1828 also indicated?

    YES  -Go to step  17.

    NO  -Go to step 7.

  7. Turn the ignition switch to LOCK (0) and then back to ON (II).
  8. Operate the slide switch for 2 seconds, and check the slide motor operation.

    Does the slide motor run smoothly?

    YES  -Go to step 9.

    NO  -Go to step  24.

  9. Turn the ignition switch to LOCK (0).
  10. Disconnect power seat control unit connector A (40P).
  11. Disconnect the slide motor/position sensor 5P connector.
  12. Check for continuity between power seat control unit connector A (40P) terminals No. 11, No. 15, and No. 29 and slide motor/position sensor 5P connector terminals No. 2, No. 3, and No. 4 respectively.

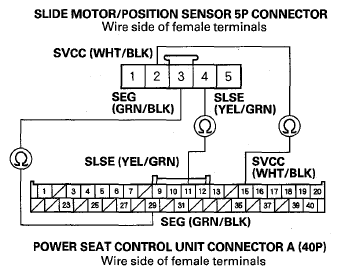

    Fig 1: Checking Continuity Between Power Seat Control Unit Connector A (40P) Terminals 11 And Slide Motor/Position Sensor 5P Connector Terminals 2
    G08061431Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  -Go to step 13.

    NO  -Repair an open or high resistance in the wire.

  13. Check for continuity between power seat control unit connector A (40P) terminal No. 11 and body ground.

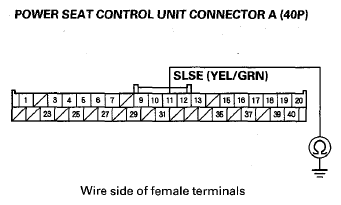

    Fig 2: Checking Continuity Between Power Seat Control Unit Connector A (40P) Terminal No. 11 And Body Ground
    G08061432Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  -Repair a short to ground in the wire.

    NO  -Go to step 14.

  14. Reconnect power seat control unit connector A (40P).
  15. Turn the ignition switch to ON (II).
  16. Measure the voltage between the slide motor/position sensor 5P connector terminals No. 4 (+) and No. 3 (-).

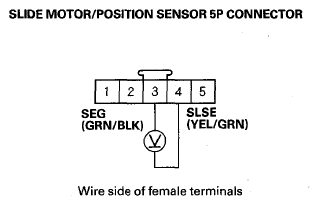

    Fig 3: Measuring Voltage Between Slide Motor/Position Sensor 5P Connector Terminals No. 4 (+) And No. 3 (-)
    G08061433Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there about 5 V?

    YES  -Replace the slide motor/position sensor (see FRONT SEAT FRAME REPLACEMENT - DRIVER'S SEAT ).

    NO  -If there is no voltage, replace the power seat control unit (see POWER SEAT CONTROL UNIT INPUT TEST/REPLACEMENT  ). If there is battery voltage, repair a short in the wire (sensor line).

  17. Turn the ignition switch to LOCK (0).
  18. Disconnect power seat control unit connector A (40P).
  19. Disconnect the slide motor/position sensor 5P connector.
  20. Check for continuity between power seat control unit connector A (40P) terminals No. 15 and No. 29 and slide motor/position sensor 5P connector terminals No. 2 and No. 3 respectively.

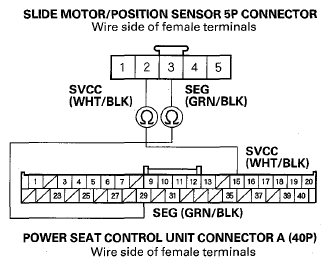

    Fig 4: Checking Continuity Between Power Seat Control Unit Connector A (40P) Terminals 15 And Slide Motor/Position Sensor 5P Connector Terminals 2
    G08061434Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  -Go to step 21.

    NO  -Repair an open or high resistance in the wire.

  21. Reconnect power seat control unit connector A (40P).
  22. Turn the ignition switch to ON (II).
  23. Measure the voltage between power seat control unit connector A (40P) terminals No. 15 and No. 29.

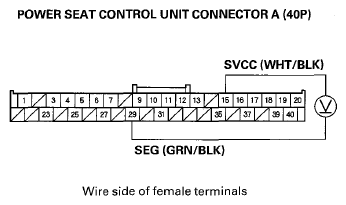

    Fig 5: Measuring Voltage Between Power Seat Control Unit Connector A (40P) Terminals No. 15 And No. 29
    G08061435Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there battery voltage when the slide switch is operated?

    YES  -Replace the slide motor/position sensor (see FRONT SEAT FRAME REPLACEMENT - DRIVER'S SEAT ).

    NO  -Replace the power seat control unit (see POWER SEAT CONTROL UNIT INPUT TEST/REPLACEMENT  ).

  24. Check the No. 14 (20 A) fuse in the under-hood fuse/relay box.

    Is the fuse OK?

    YES  -Go to step 25.

    NO  -Replace the fuse. If the fuse is blown again, repair the short to ground in the No. 14 (20 A) fuse circuit.

  25. Disconnect under-hood fuse/relay box connector E (10P).
  26. Disconnect power seat control unit connector B (18P).
  27. Check for continuity between under-hood fuse/relay box connector E (10P) terminal No. 9 and power seat control unit connector B (18P) terminal No. 8.

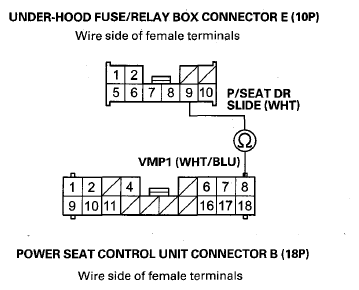

    Fig 6: Checking Continuity Between Under-Hood Fuse/Relay Box Connector E (10P) Terminal 9 And Power Seat Control Unit Connector B (18P) Terminal 8
    G08061436Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  -Go to step 28.

    NO  -Repair an open or high resistance in the wire.

  28. Reconnect power seat control unit connector B (18P).
  29. Measure the voltage between power seat control unit connector B (18P) terminal No. 18 and body ground when operate the slide switch.

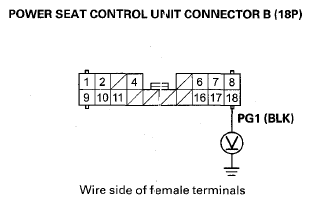

    Fig 7: Measuring Voltage Between Power Seat Control Unit Connector B (18P) Terminal No. 18 And Body Ground
    G08061437Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there more than 0.2 V?

    YES  -Repair an open or high resistance in the ground wire or poor ground (GE551).

    NO  -Go to step 30.

  30. Turn the ignition switch to LOCK (0).
  31. Disconnect power seat control unit connector B (18P).
  32. Disconnect the slide motor/position sensor 5P connector.
  33. Check for continuity between power seat control unit connector B(18P) terminals No. 7 and No. 17 and slide motor/position sensor 5P connector terminals No. 5 and No. 1 respectively.

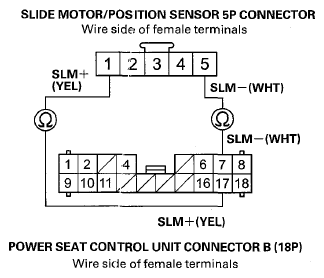

    Fig 8: Checking Continuity Between Power Seat Control Unit Connector B(18P) Terminals 7 And Slide Motor/Position Sensor 5P Connector Terminals 5
    G08061438Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  -Go to step 34.

    NO  -Repair an open or high resistance in the wire.

  34. Check for continuity between body ground and slide motor/position sensor 5P connector terminals No. 1 and No. 5 individually.

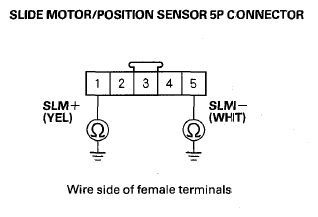

    Fig 9: Checking Continuity Between Body Ground And Slide Motor/Position Sensor 5P Connector Terminals No. 1
    G08061439Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  -Repair a short to ground in the wire.

    NO  -Go to step 35.

  35. Test the slide motor (see DRIVER'S POWER SEAT MOTOR TEST  ).

    Is the motor OK?

    YES  -Replace the power seat control unit (see POWER SEAT CONTROL UNIT INPUT TEST/REPLACEMENT  ).

    NO  -Replace the slide motor/position sensor (see FRONT SEAT FRAME REPLACEMENT - DRIVER'S SEAT ).
