Driver's Power Seat Motor Test

NOTE: SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or servicing.

Remove the driver's seat (see FRONT SEAT REMOVAL/INSTALLATION ).
Remove the back cover for recline motor (see FRONT SEAT-BACK COVER/PAD REPLACEMENT ).
Disconnect the connector from each power seat motor.
NOTE: All connectors are terminal side of male terminals.

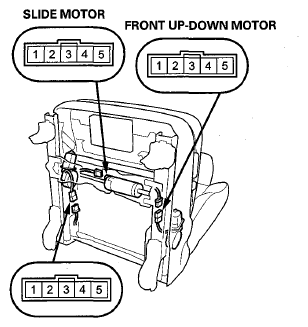

Fig 1: Identifying Slide Motor And Front/Rear Up-Down Motor Connector End Views
Courtesy of AMERICAN HONDA MOTOR CO., INC.

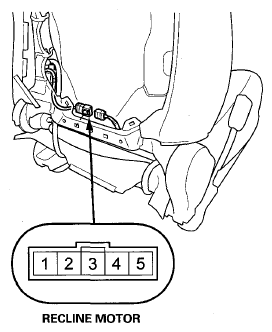

Fig 2: Identifying Recline Motor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test each motor by connecting power and ground according to the table. When the motor stops running, disconnect battery power immediately.

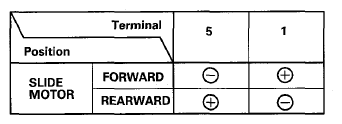

Fig 3: Slide Motor Continuity Reference Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

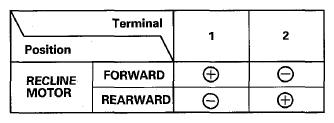

Fig 4: Recline Motor Continuity Reference Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

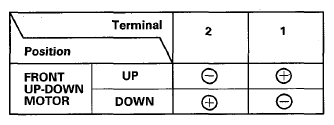

Fig 5: Front Up-Down Motor Continuity Reference Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

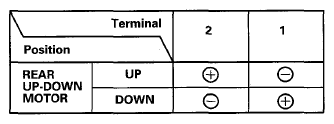

Fig 6: Rear Up-Down Motor Continuity Reference Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the slide motor does not run or fails to run smoothly, replace it (see FRONT SEAT FRAME REPLACEMENT - DRIVER'S SEAT ).
NOTE: If the front up-down motor, the rear up-down motor, or the recline motor does not run or fails to run smoothly, replace the seat frame assembly (see FRONT SEAT FRAME REPLACEMENT - DRIVER'S SEAT ).
